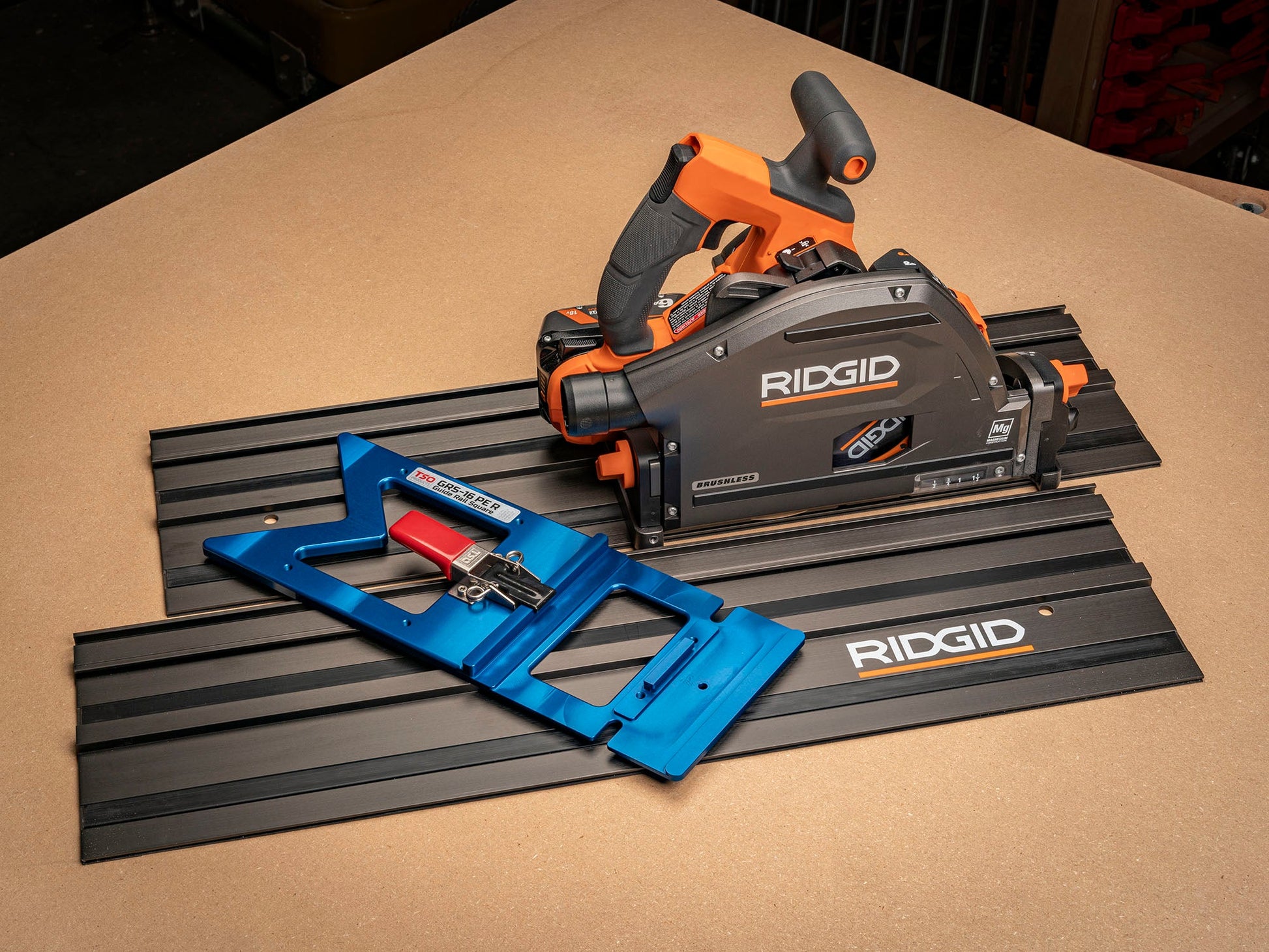

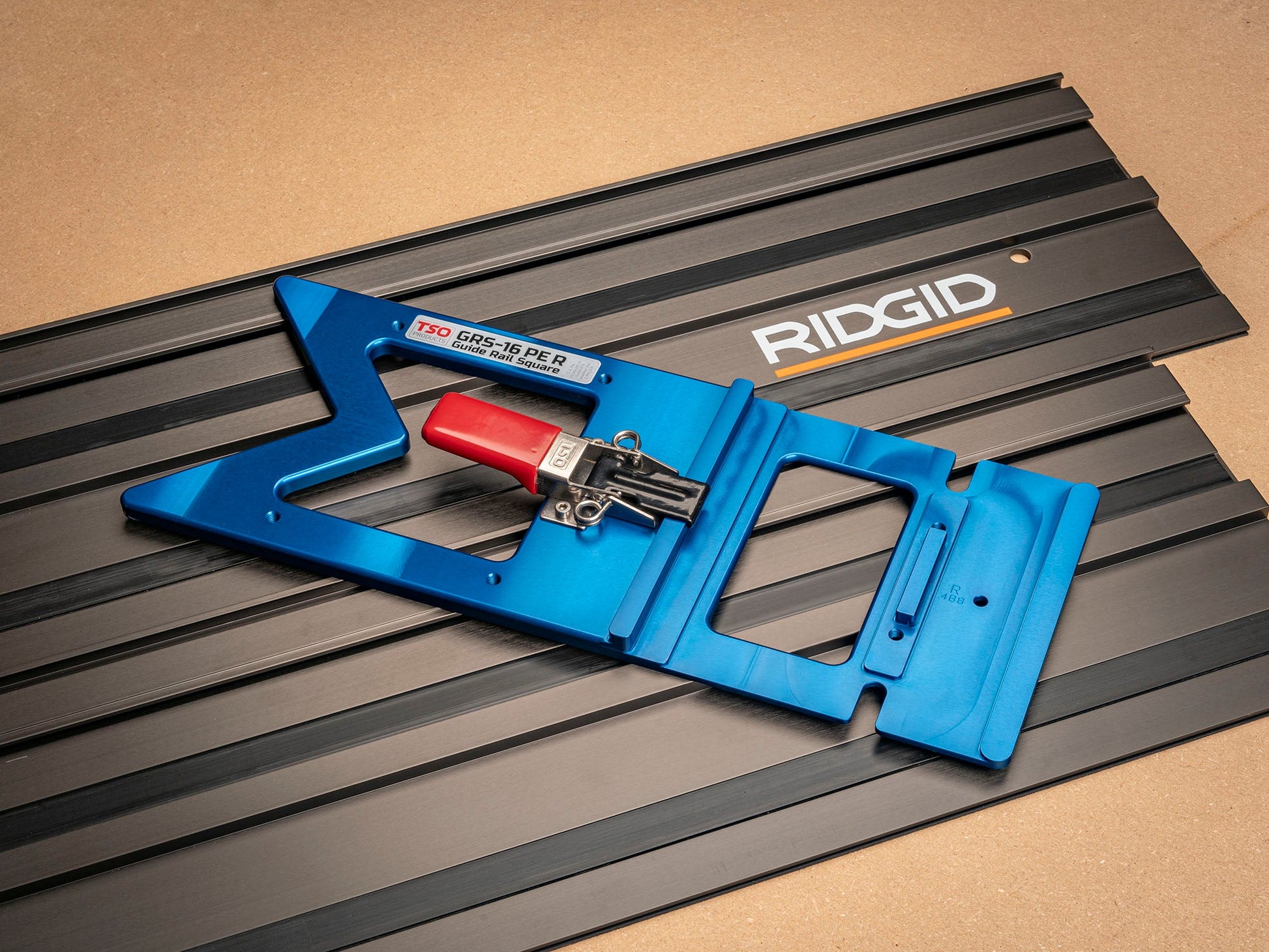

TSO Products GRS-16 PE R Guide Rail Square for AEG/RIDGID Track Saws

Fast, Easy & Repeatable 90° Cuts with Your AEG/RIDGID Cordless Track Saw

Watch this video for an introduction to our GRS-16 PE R guide rail square for RIDGID track saws.

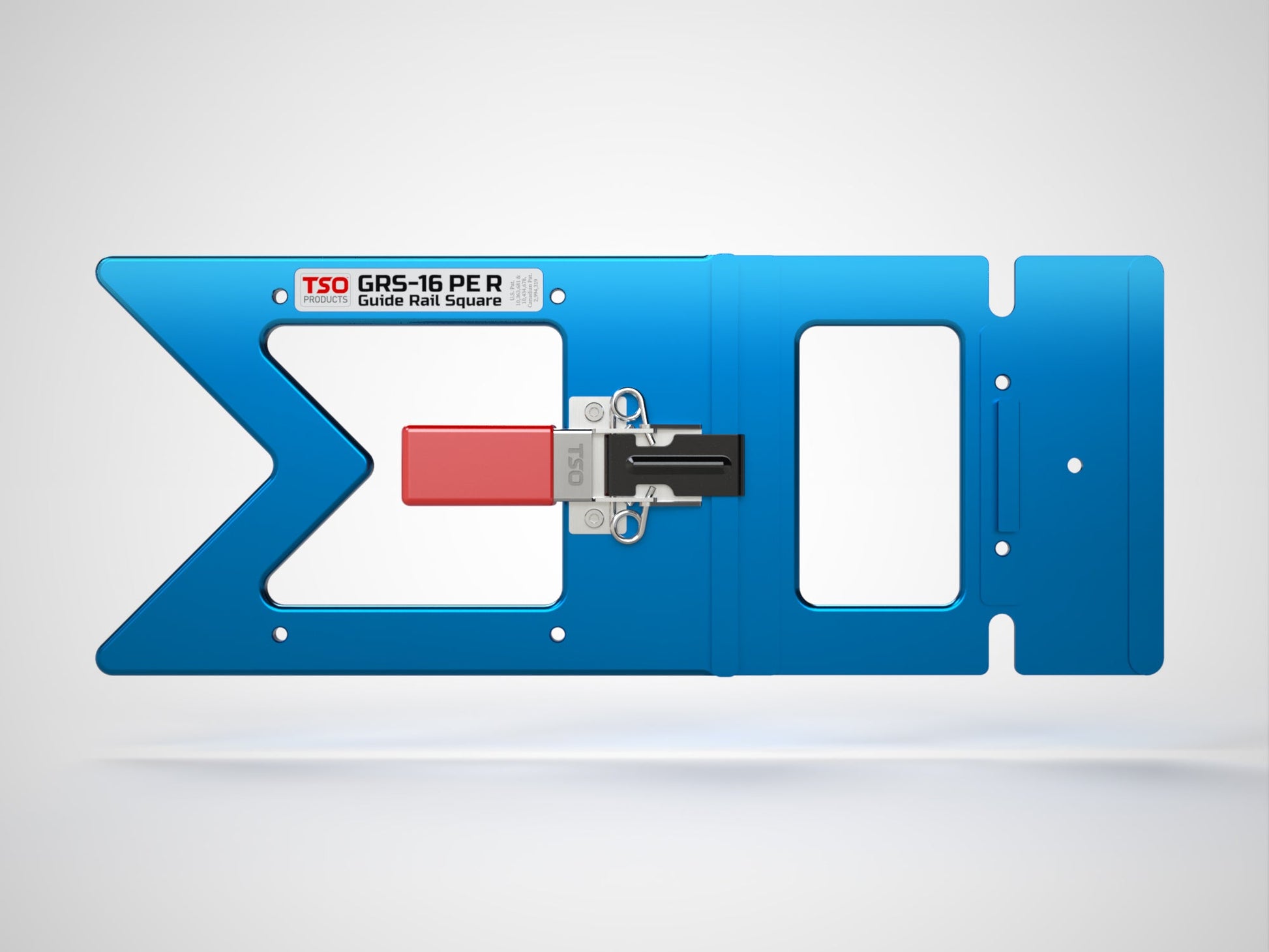

Speed up the process of breaking down sheet goods with your AEG/RIDGID® track saw using the GRS-16 PE R guide rail square. Just like the proven GRS-16 PE square, the GRS-16 PE R features two parallel edges permitting squaring against the front or back of your work piece. And with a single-piece, CNC-machined design that self-squares to 90 degrees as it clamps to your guide rail, there's no adjustments or calibration needed now or into the future. Enjoy all of the advantages of the GRS-16 family—including connection to the TSO Parallel Guide System—now compatible with AEG & RIDGID Track Saws!

Key Features

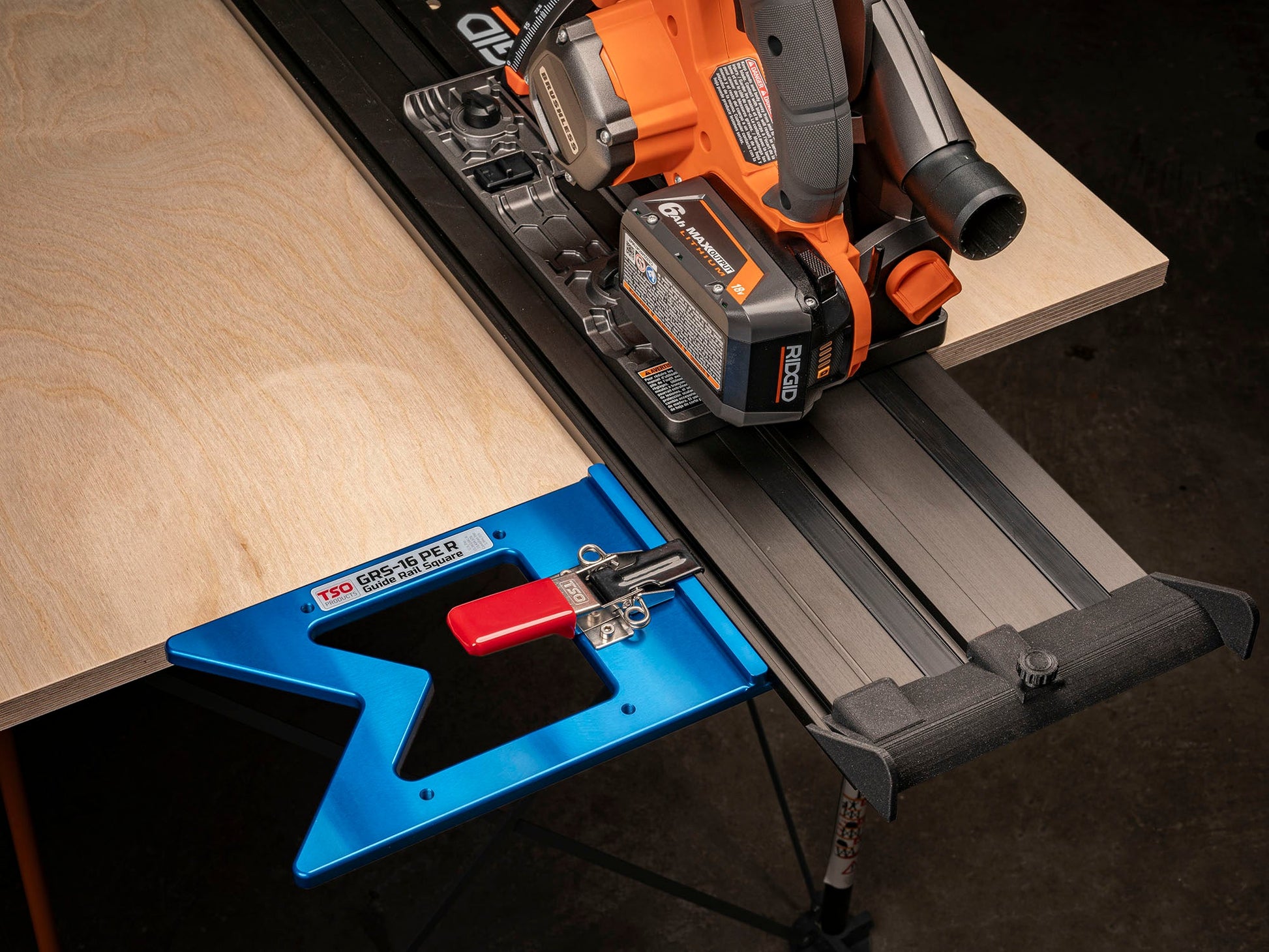

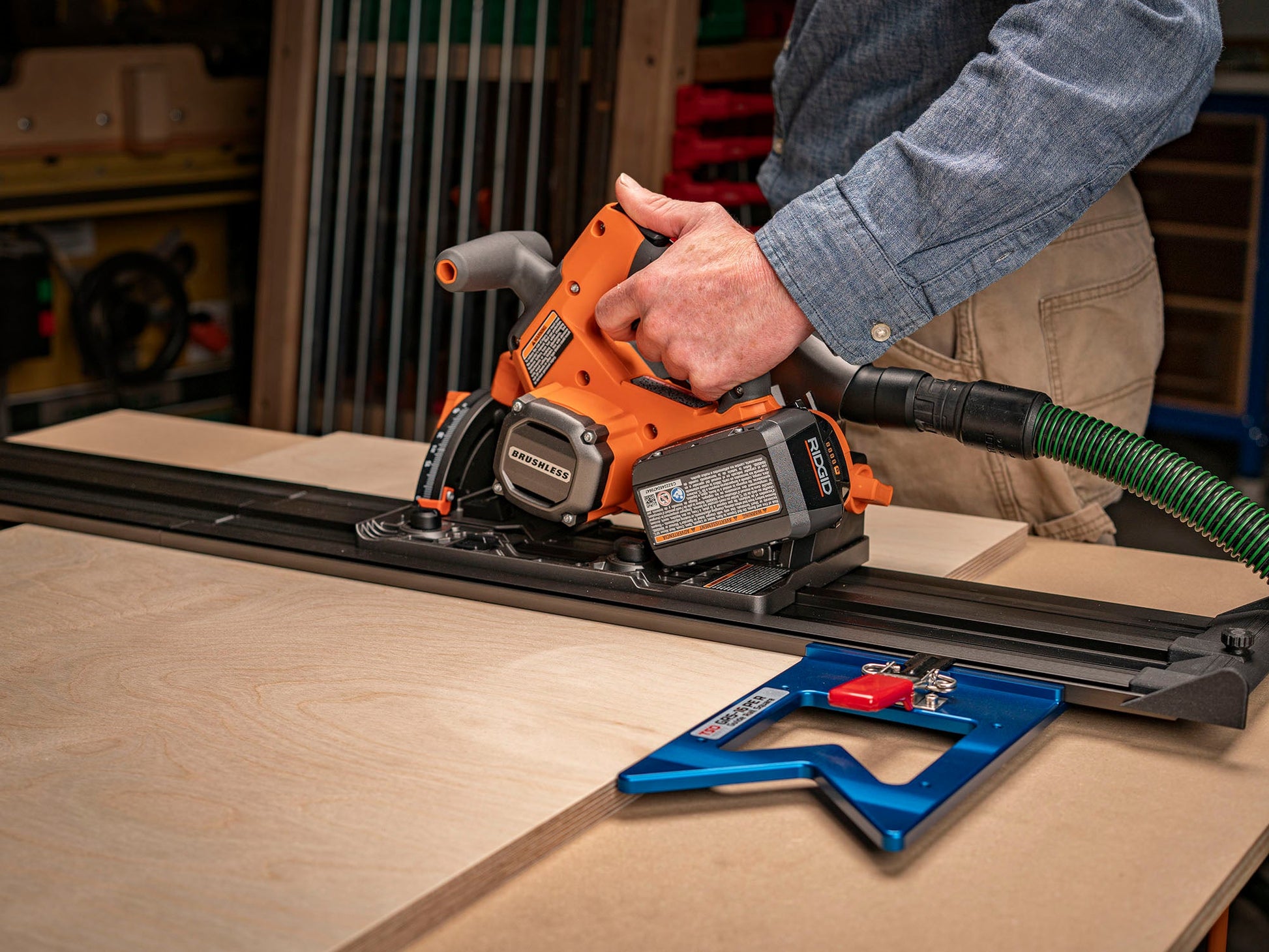

• Transforms your AEG/RIDGID guide rail into a high precision square for fast 90° cuts

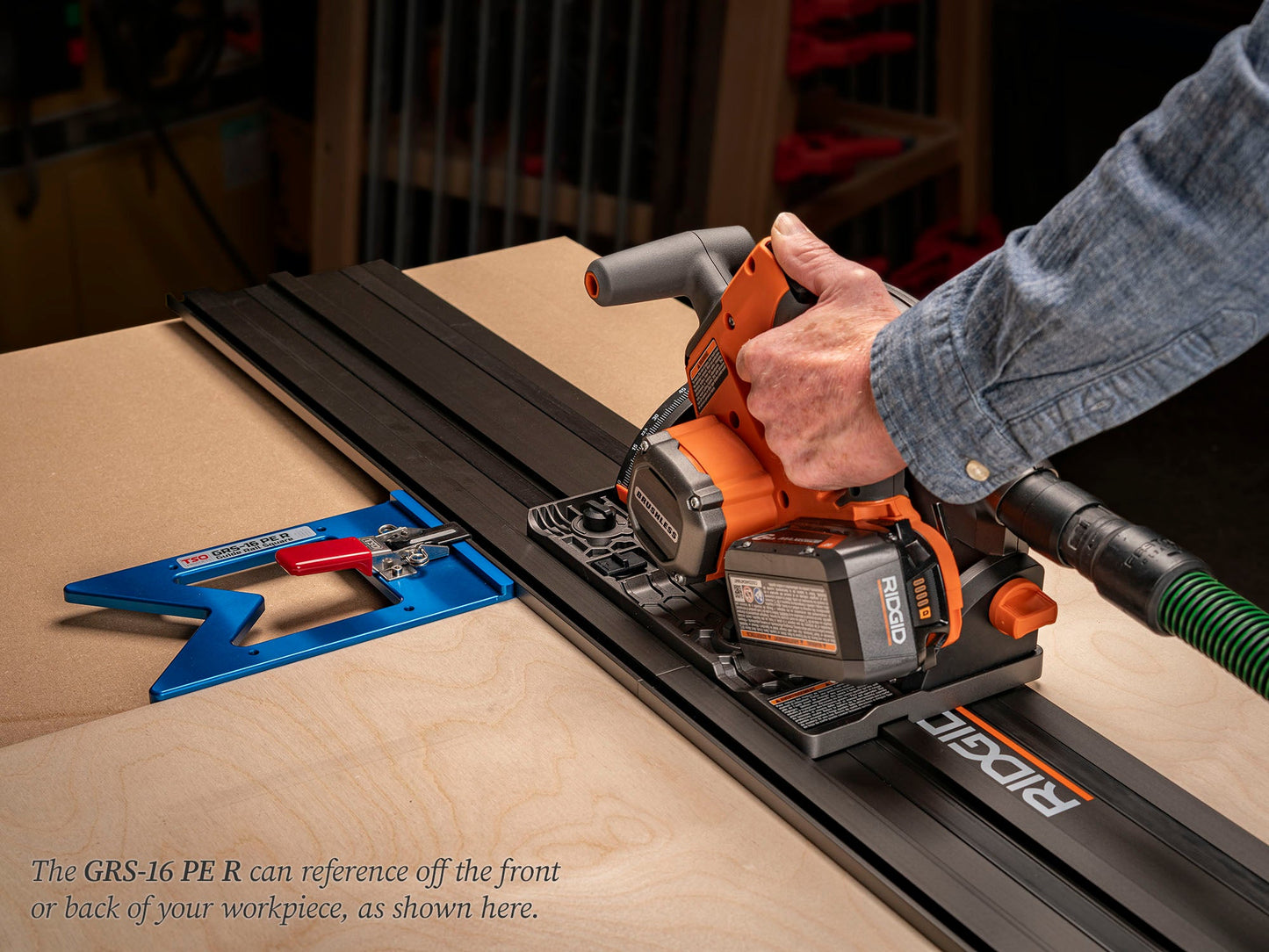

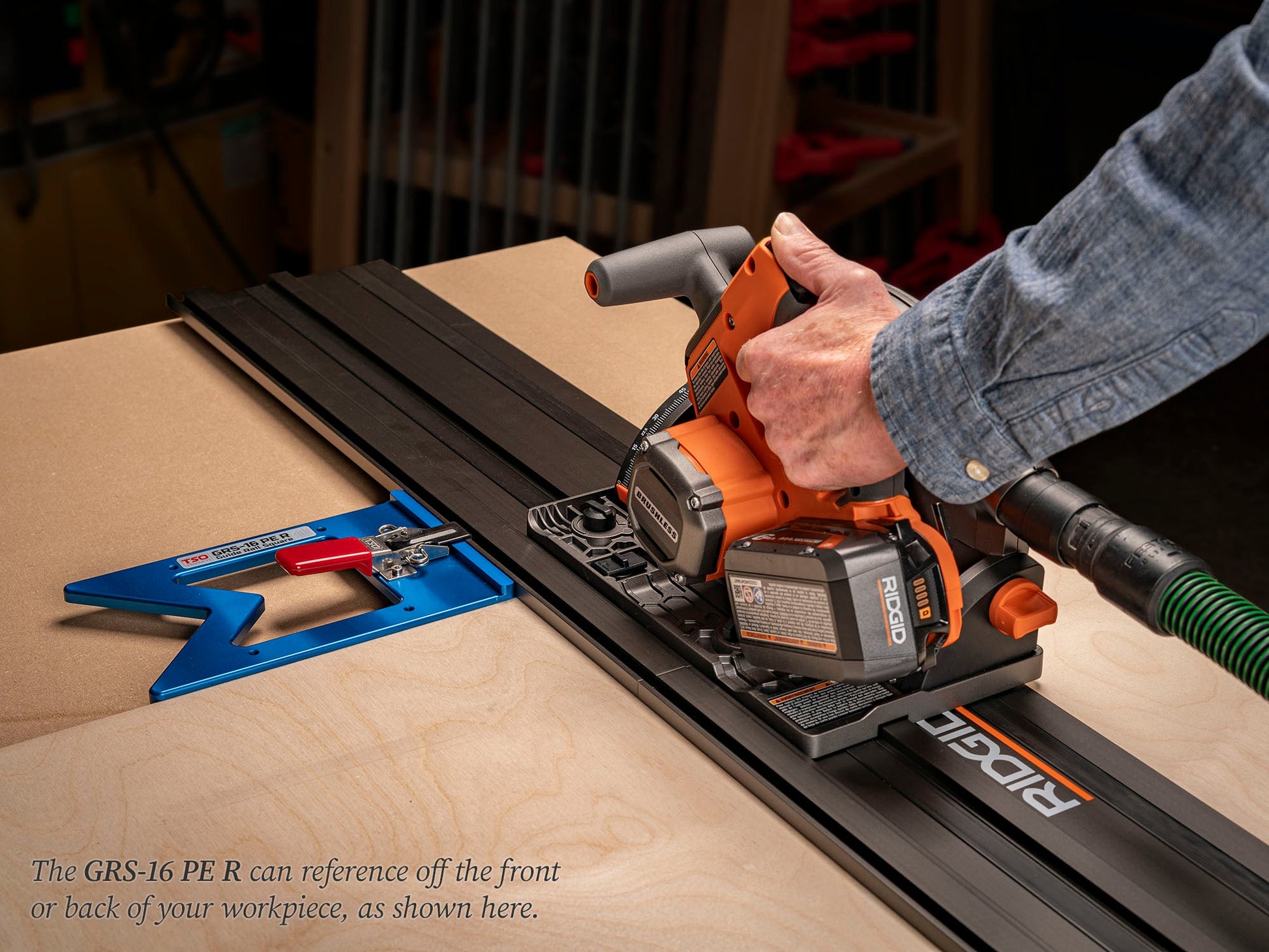

• Features two parallel reference edges, so you can square off the front or back of your work piece
• Lightweight, balanced design made from a single block of 6061-T6 aluminum and anodized for a protective, non-marring finish

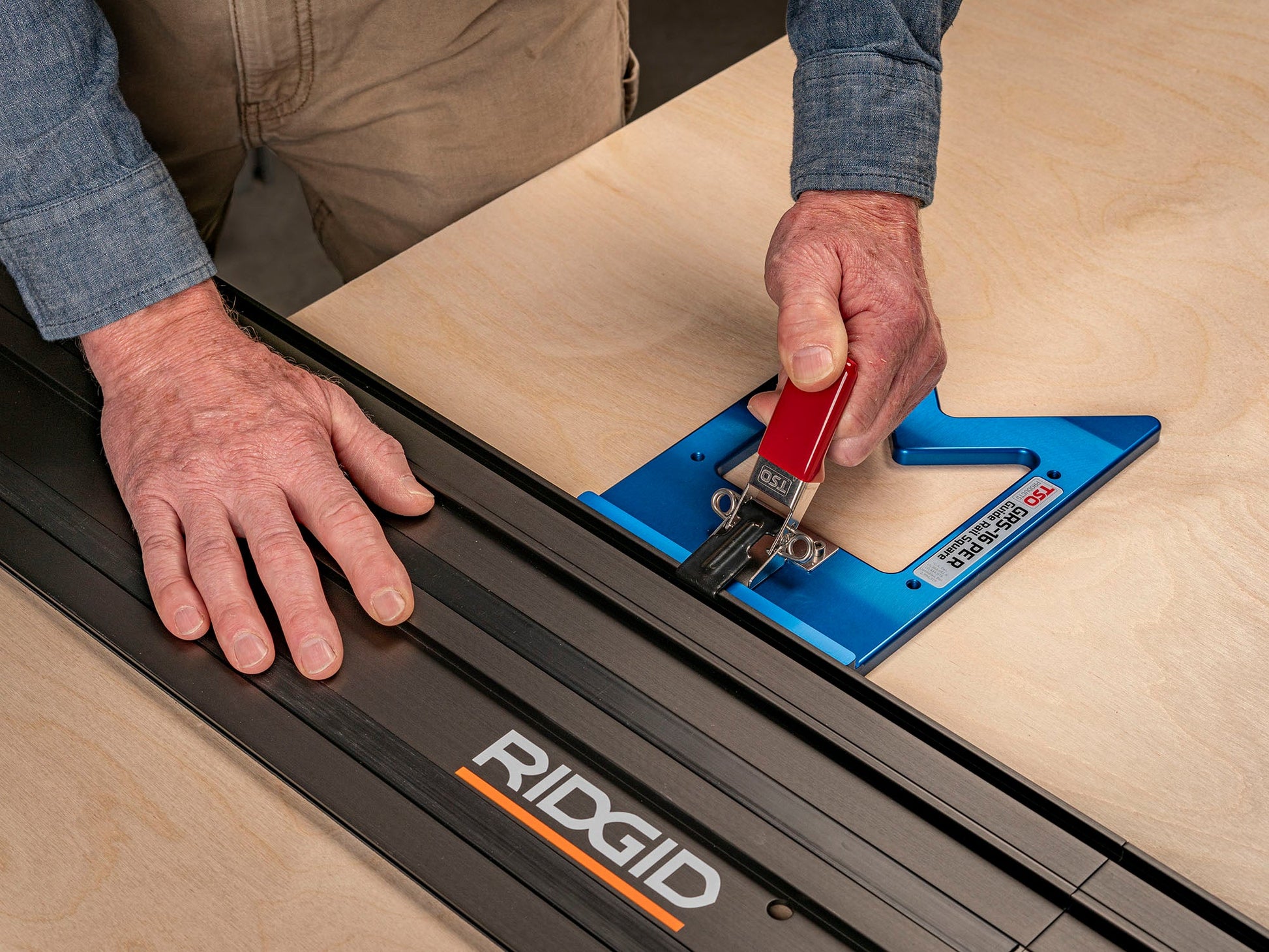

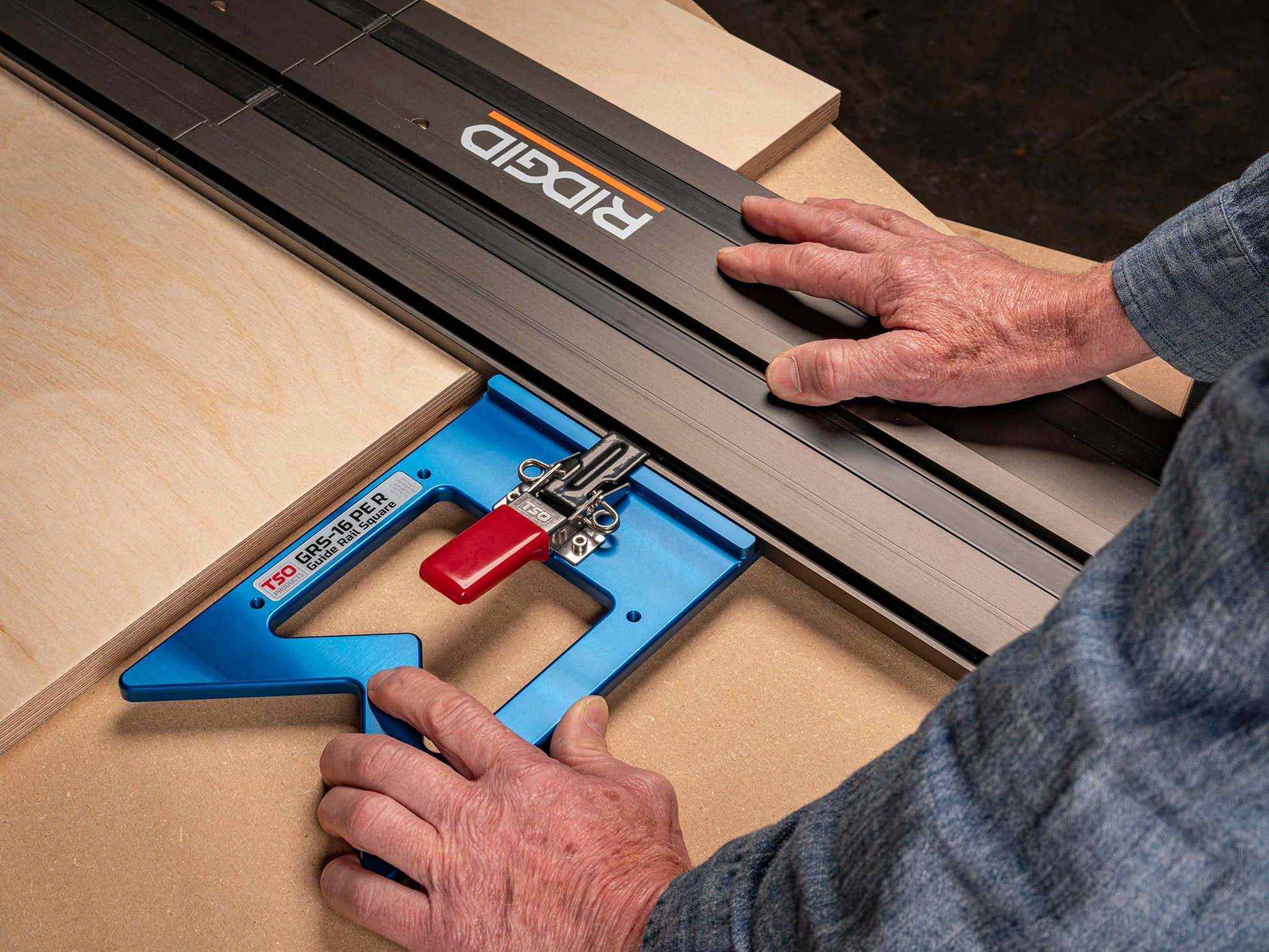

• Drop-on, rapid attachment feature allows the square to be inserted into the guide rail without the need to remove hose deflectors or other accessories

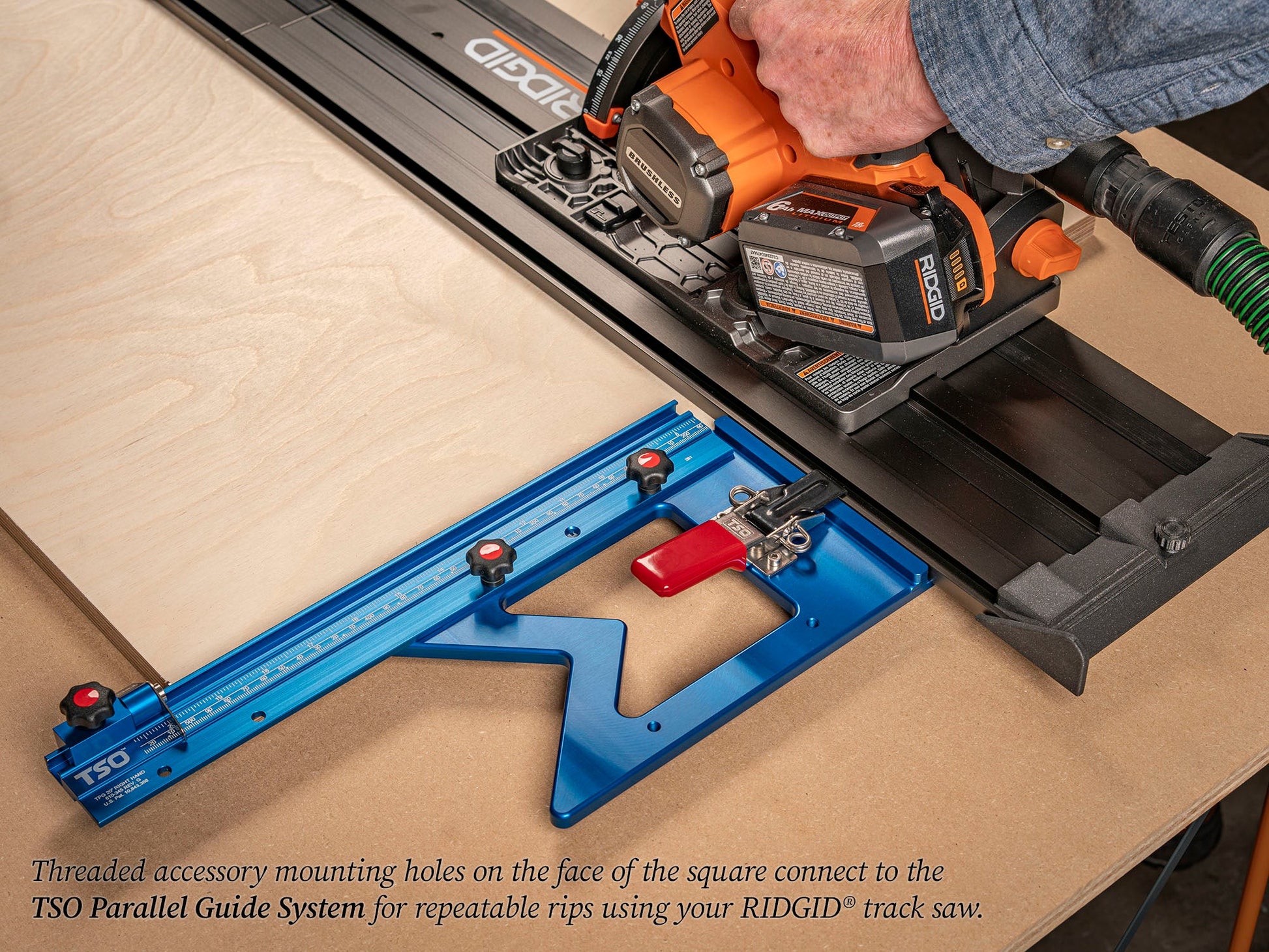

• Use as a connection method for the TSO Parallel Guide System; our TPG Slide-On Adapter v2 also fits AEG/RIDGID tracks

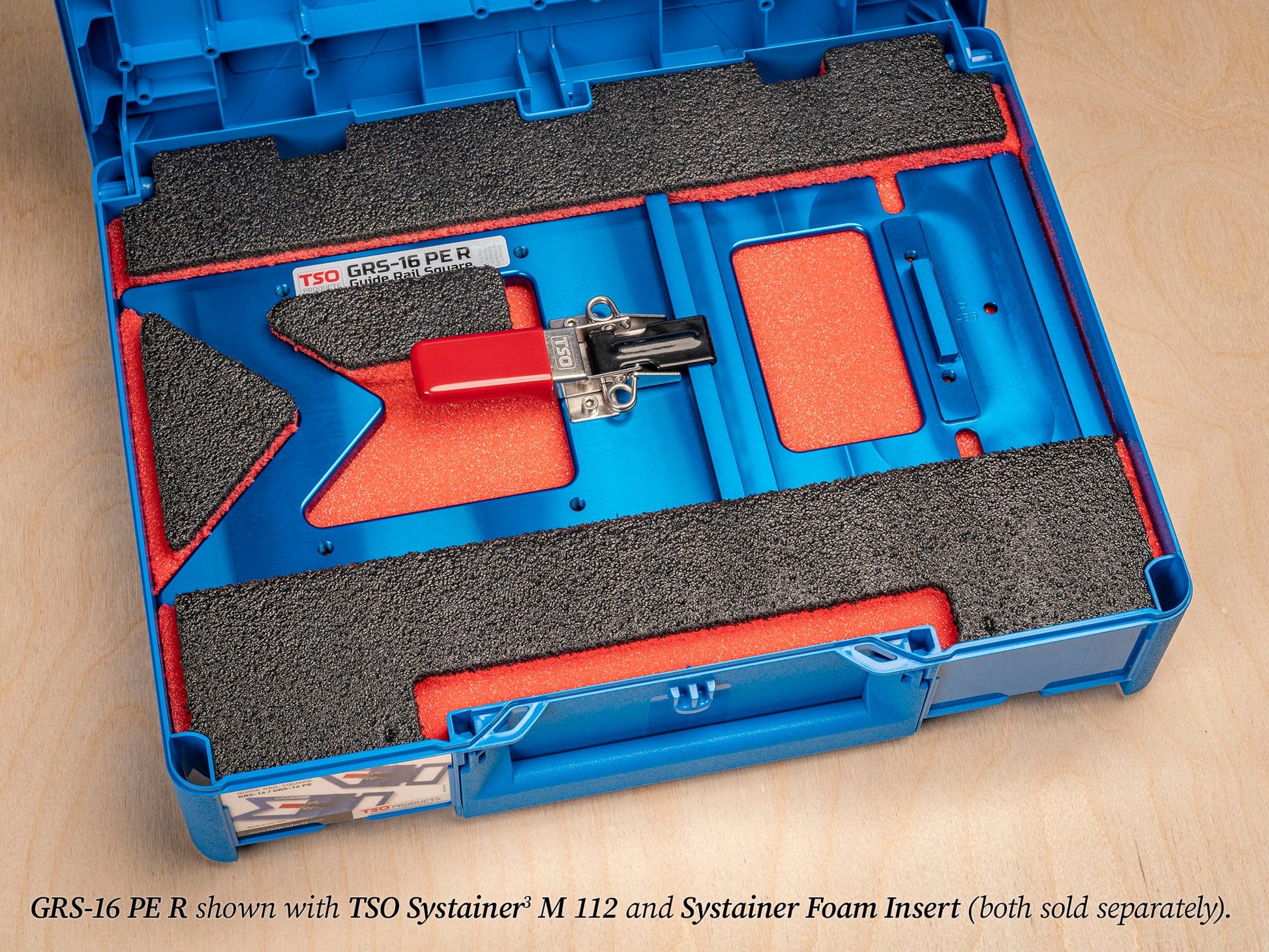

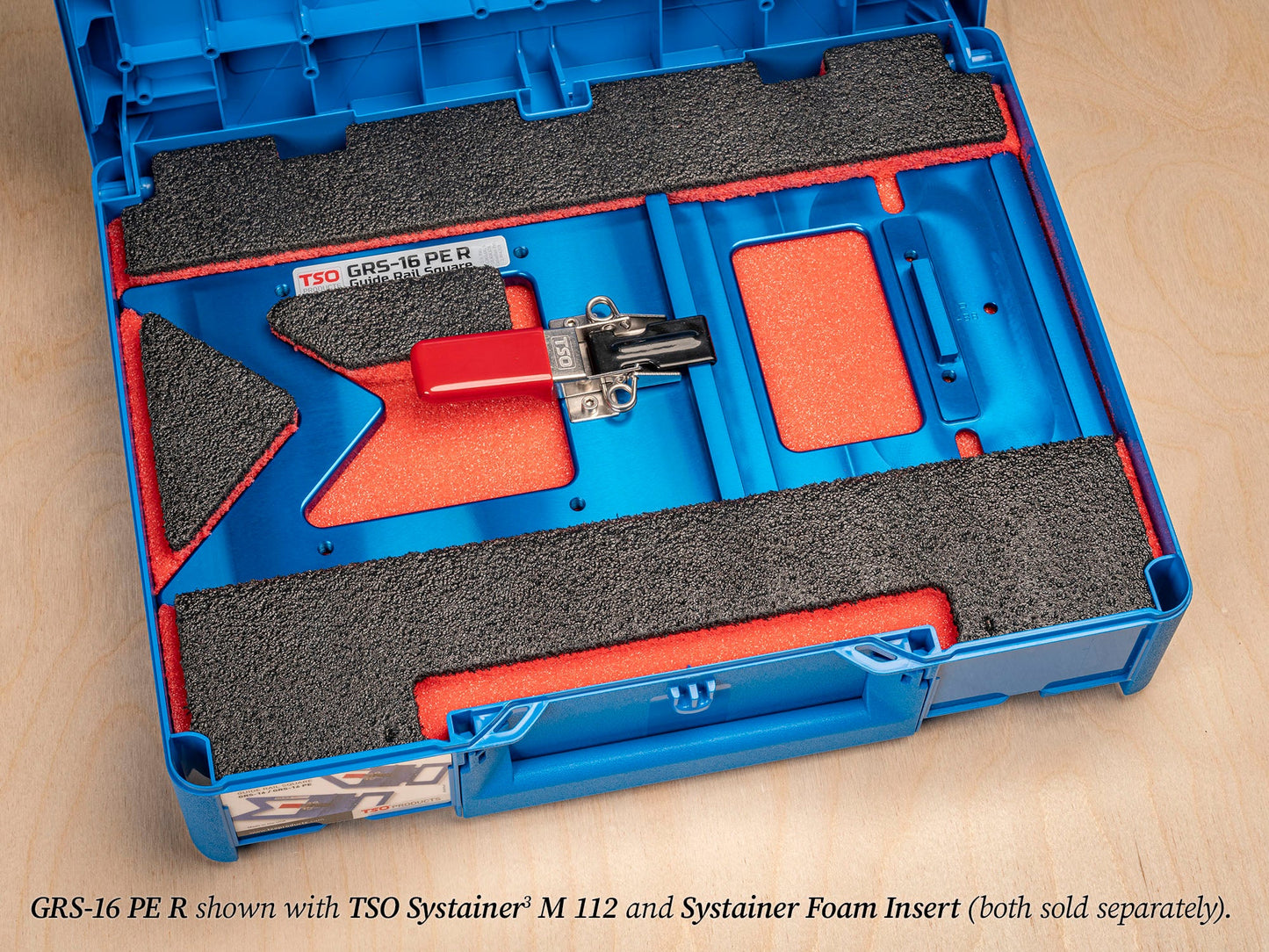

• Store, protect and transport your GRS-16 PE R with the available Custom Foam Insert fitting inside a Systainer³ M 112 or older T-LOC style Systainer
• Sustainable, fully recyclable all-corrugated white packaging

Part of TSO's system approach to woodworking, the GRS-16 PE R is compatible with the TSO Parallel Guide System.

Made in the USA and Backed by a 5-Year Warranty

The GRS-16 PE R is made in Minneapolis, United States, and comes with an industry-leading five-year warranty.

Technical Details

• Dimensions: 15.2 x 6.0 x 1.4 inches (386 x 152 x 36 mm)
• Weight: 1.9 lbs (862 g)
• Material: 6061-T6 aluminum, anodized, 5/8 in (15 mm) thick
• Compatible Guide Rails: AEG/RIDGID 18V Cordless Track Saw Guide Rails
• Clamping Mechanism: Over center draw latch (304 stainless steel) with compensating spring
• Accessory Mounting Holes: Tapped for M6 threads for compatibility with TSO Parallel Guide System and Angle Accessory
• Country of Origin: Made in the USA (designed and manufactured)
