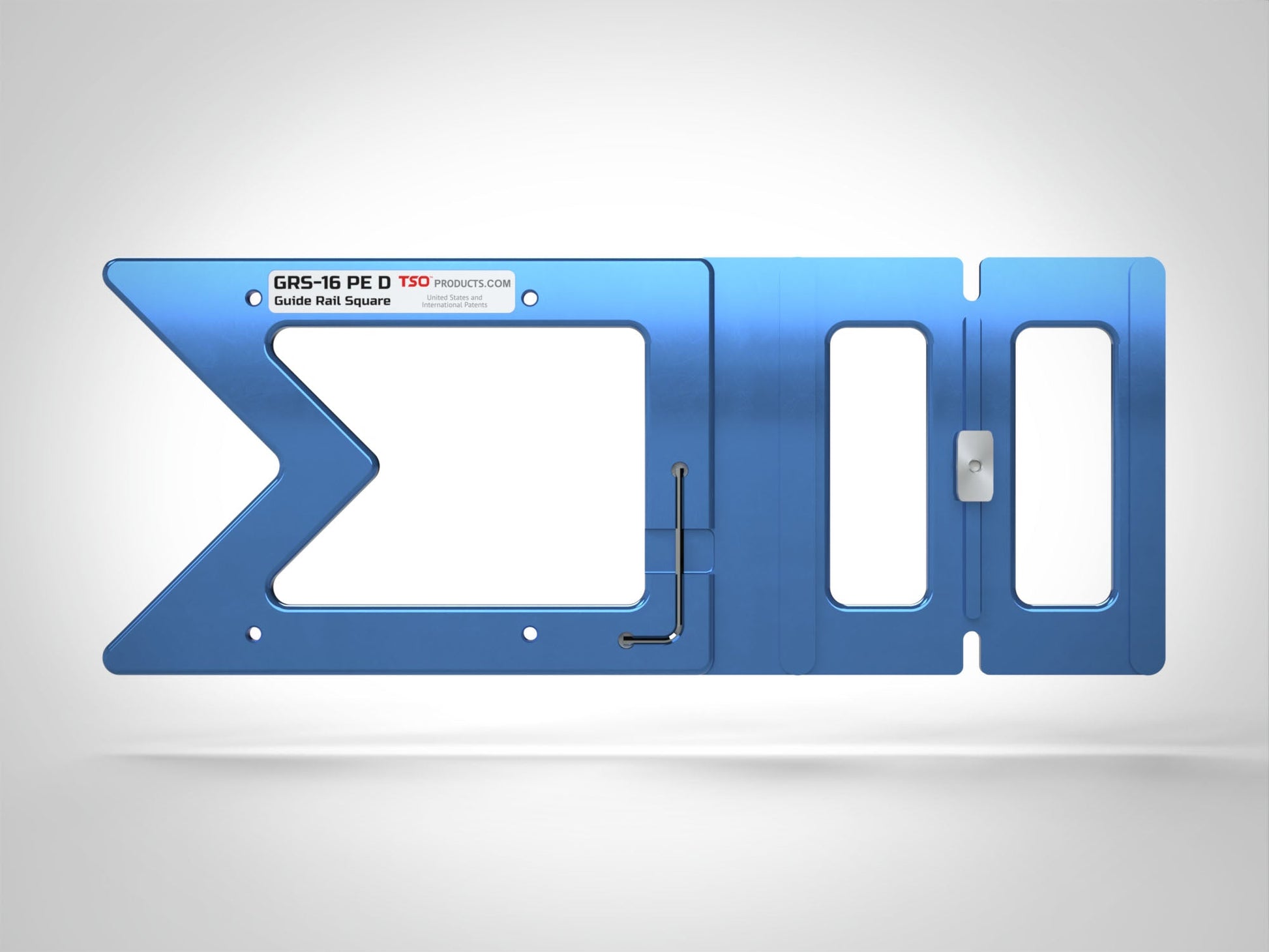

TSO Products GRS-16 PE D Guide Rail Square suits Dewalt

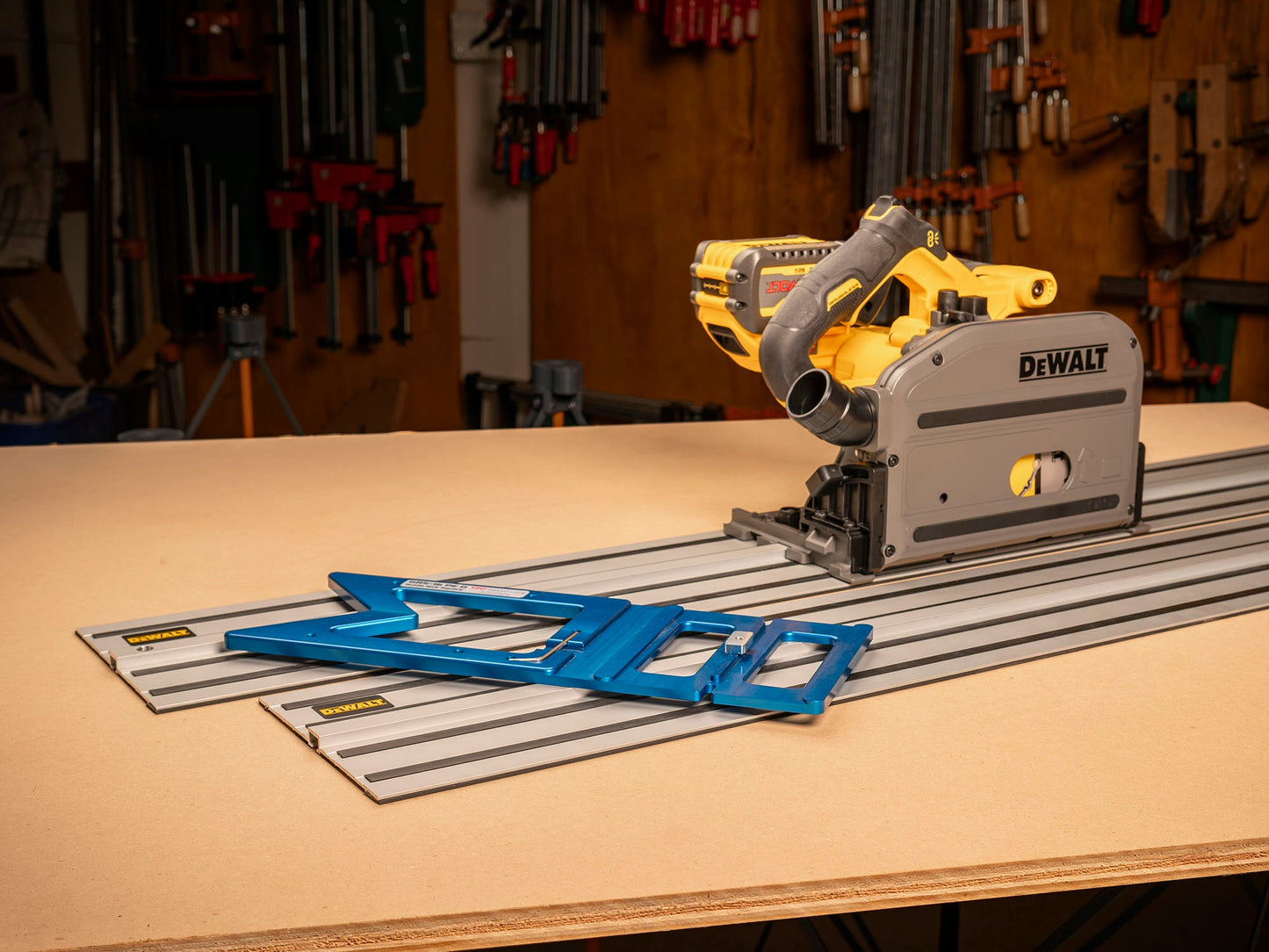

A Guide Rail Square Built for DeWalt's 60V MAX Cordless & Corded Track Saws

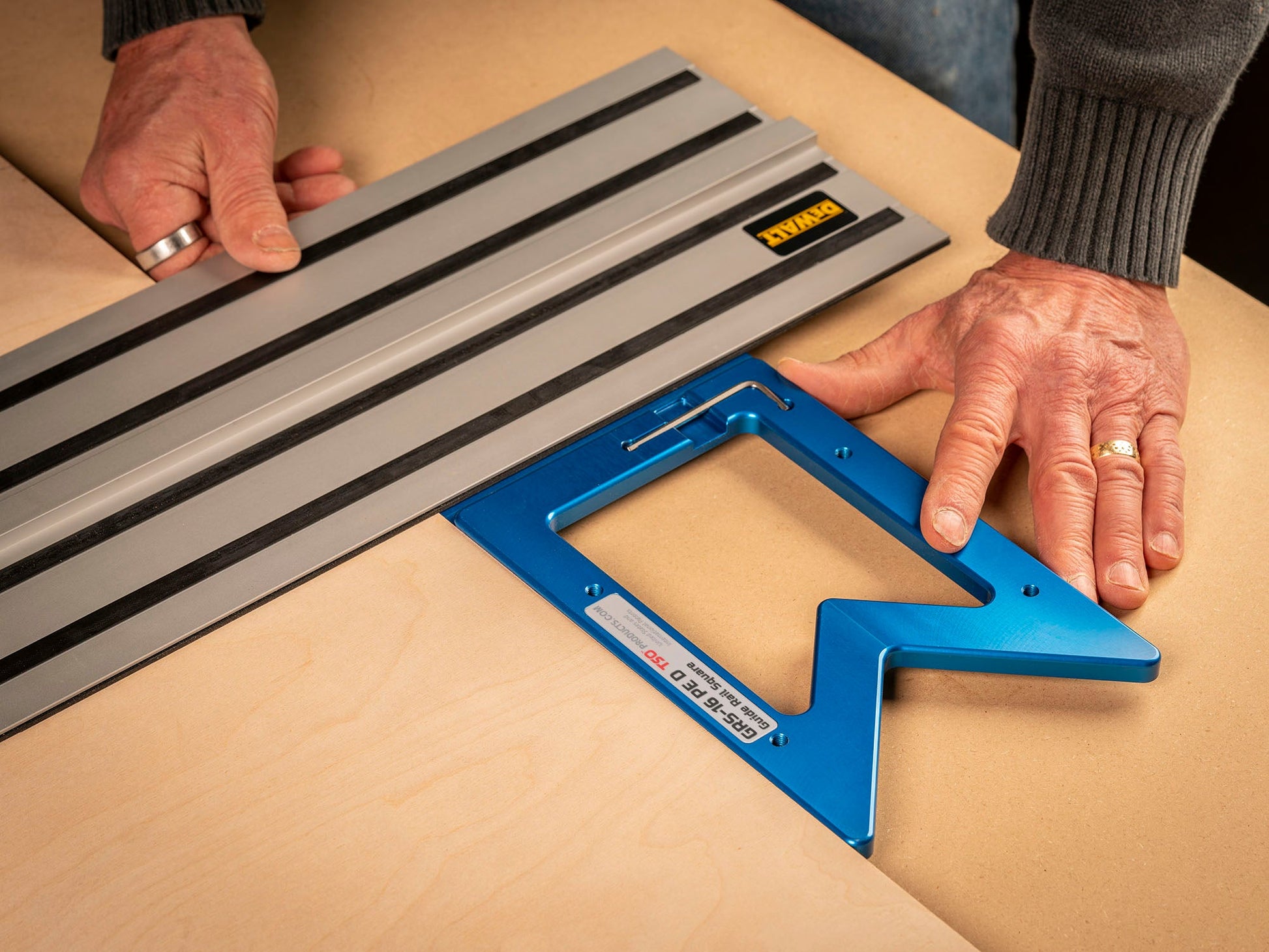

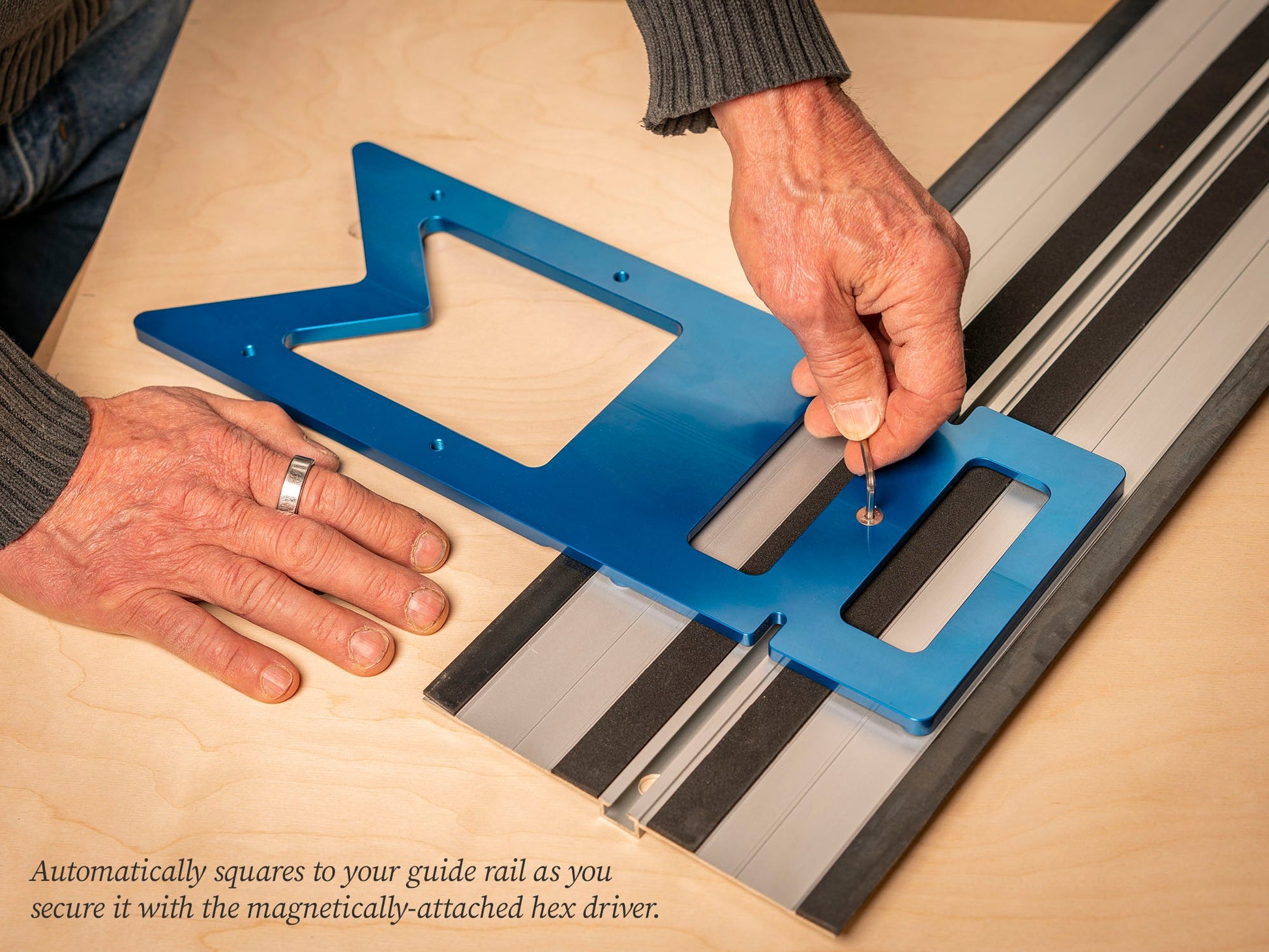

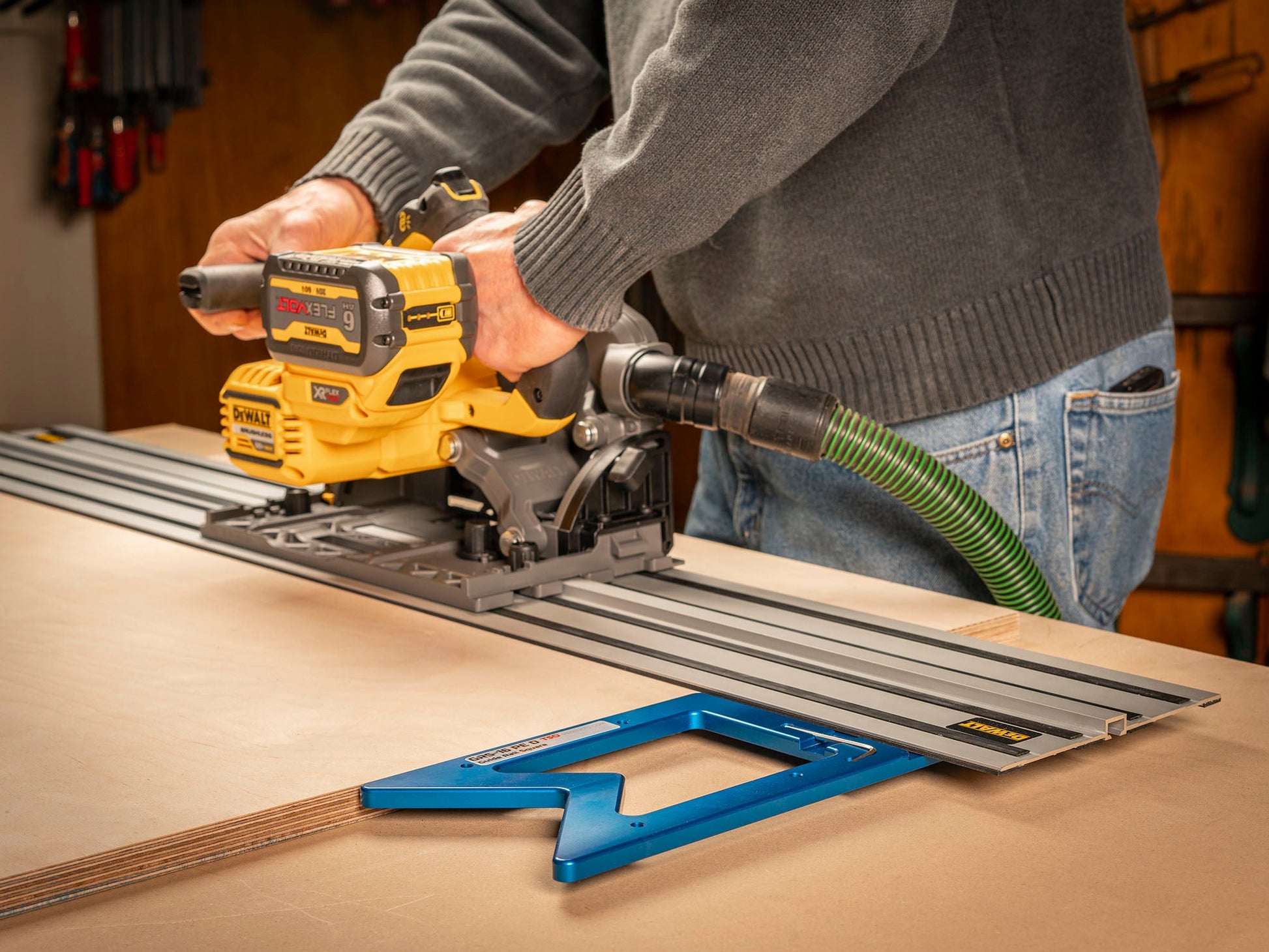

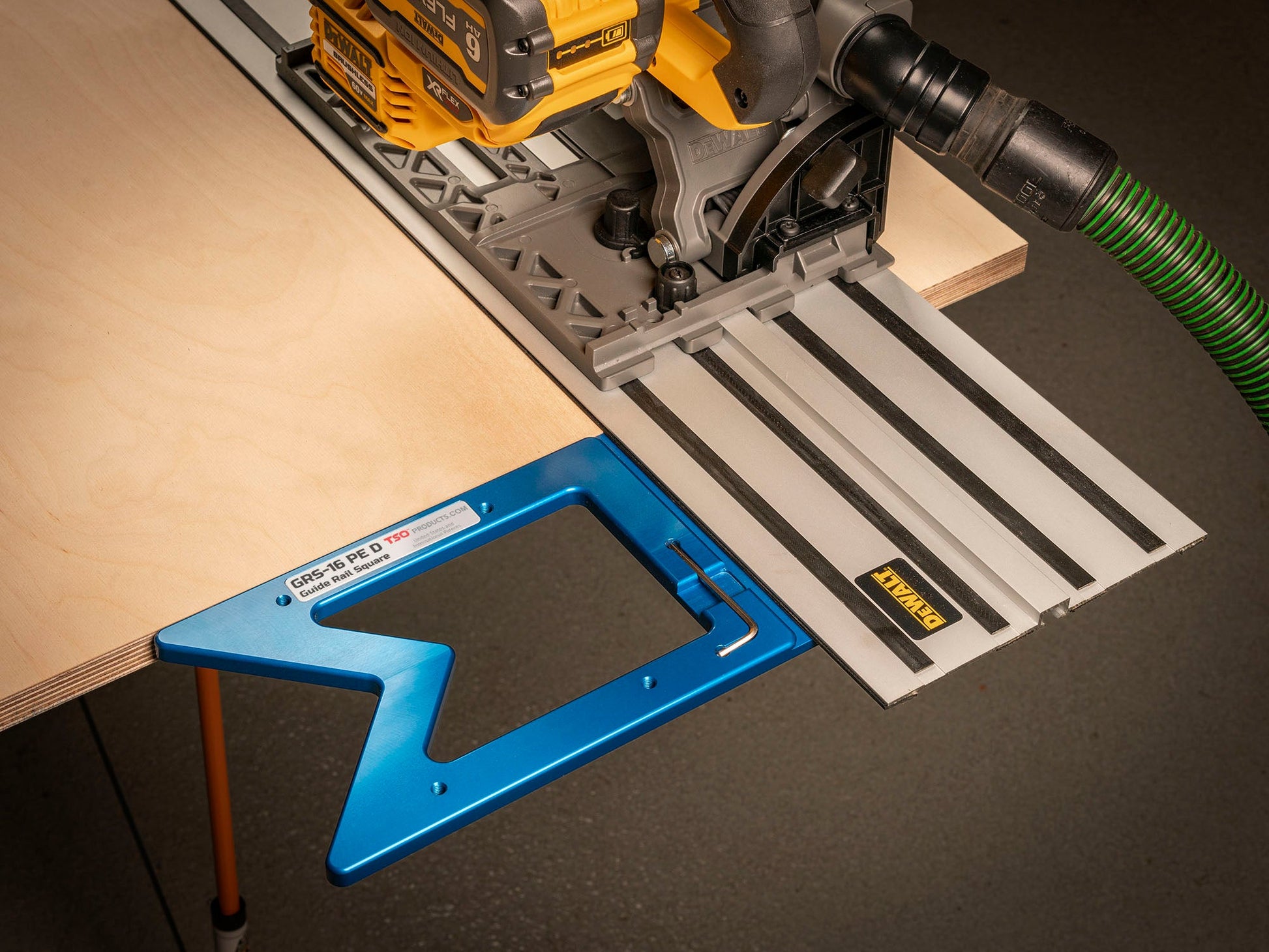

The proven design of the GRS-16 guide rail square has now been adapted to fit the DeWalt track saw system! Like the original GRS-16 and GRS-16 PE squares, the GRS-16 PE D makes it lightning fast to achieve dead square cuts with your DeWalt plunge saw. With two reference parallel edges, the GRS-16 PE D permits squaring against the front or back of your workpiece. The square attaches to your DeWalt track with a torpedo nut that automatically squares as it clamps down, resulting in a rock-solid attachment that won't fall out of square over time and will never need calibration. Simply slide the square onto your guide rail, secure the single flat head screw on the bottom of the plate using the included 3mm hex L-wrench (which stows magnetically on the face of the square so you never lose it), and you're ready to get to work.

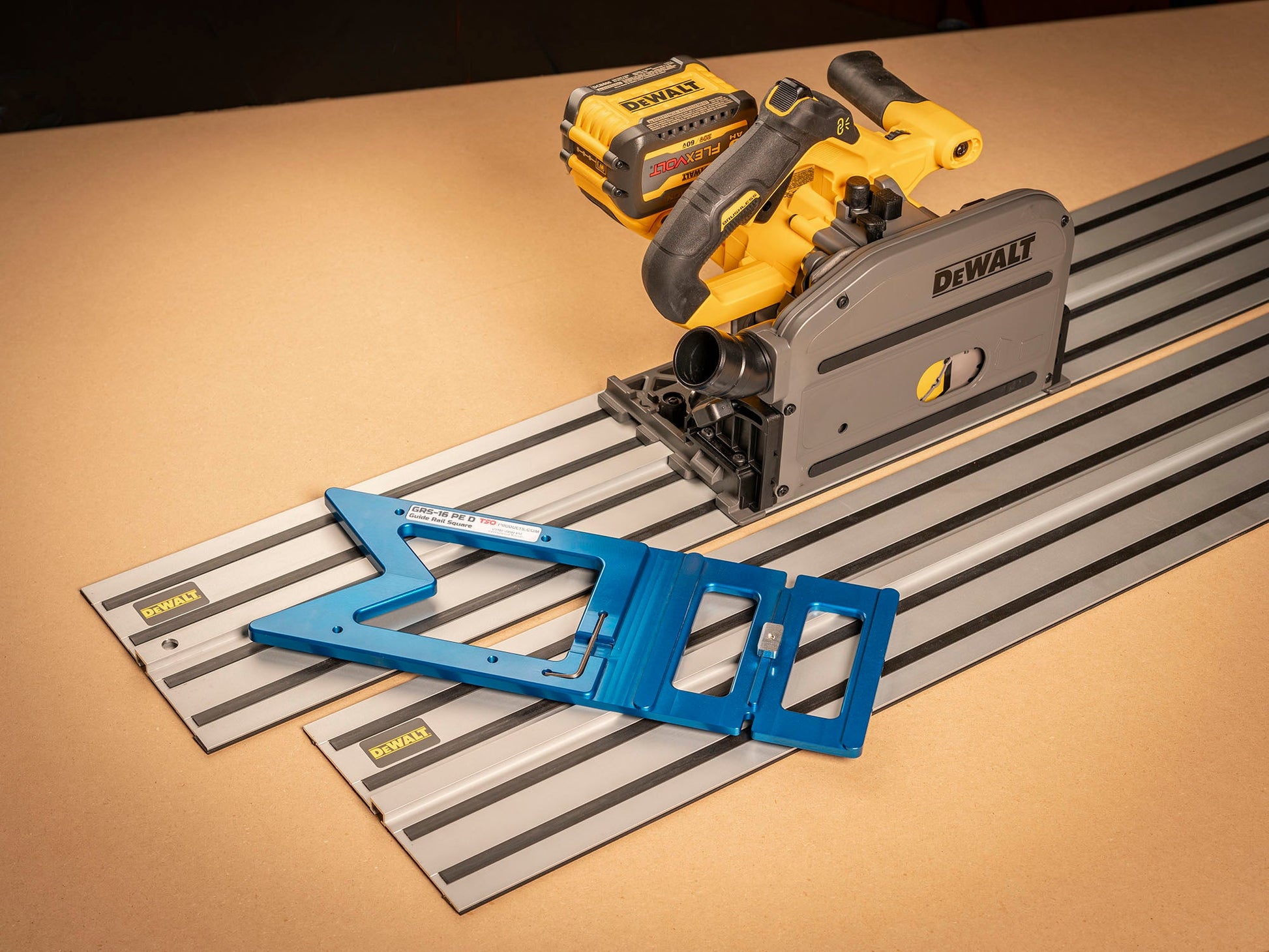

DeWalt's guide rails are uniquely symmetrical and feature splinter-guards on both sides of the track. We carefully designed the GRS-16 PE D so that it could be mounted on either side of the guide rail, without interfering with the splinter-guards. "Other" tools on the market require you to cut off a portion of your spliter-guard to mount the square, limiting where you can place and move the square along the guide rail; not so with the GRS-16 PE D!

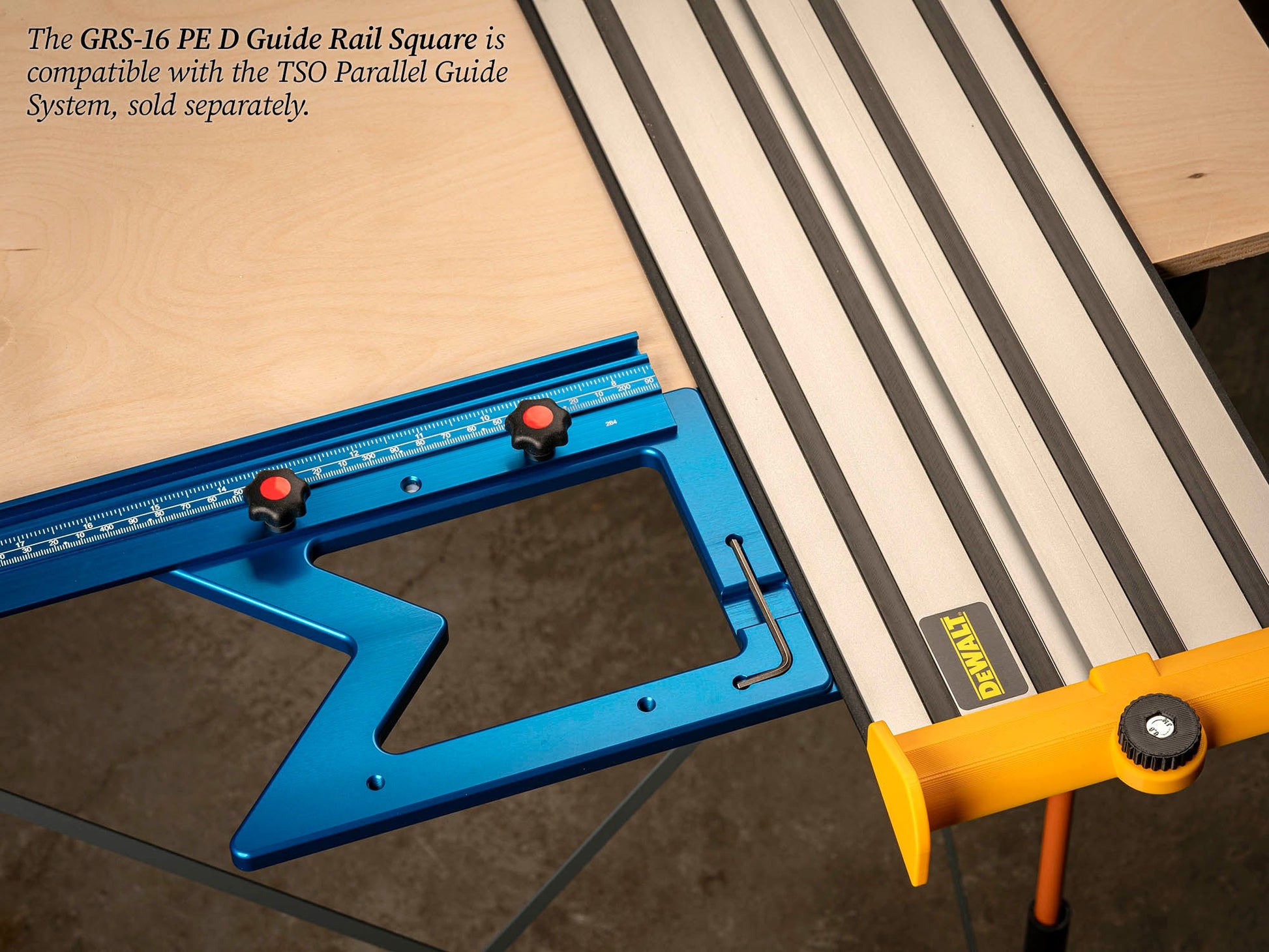

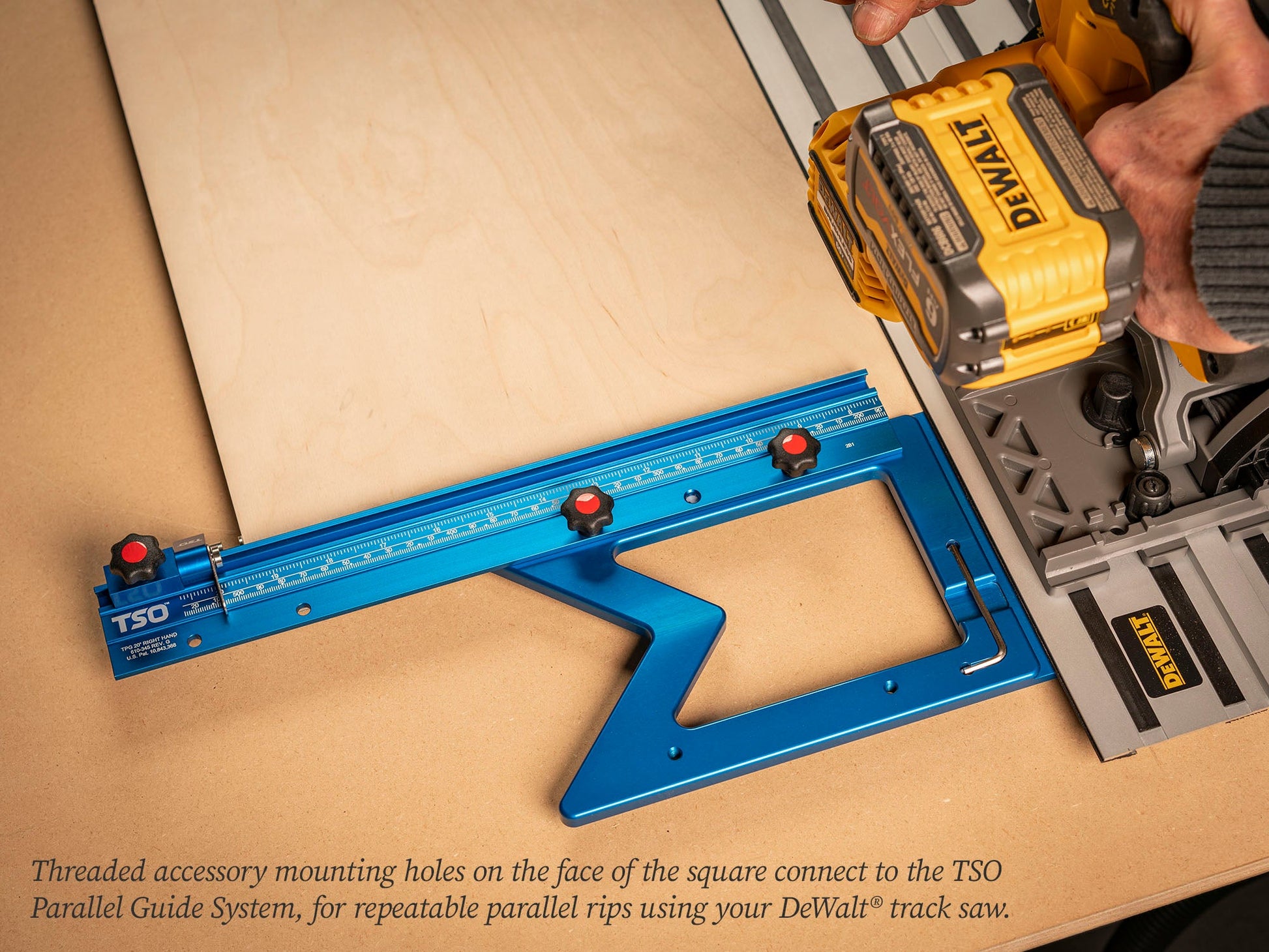

Part of TSO's system approach to woodworking, the GRS-16 PE D is compatible with the TPG Parallel Guide System.

GRS-16 PE D Highlights

• Transforms your DeWalt track into a high precision square for fast 90° cuts
• Features two parallel reference edges, so you can square off the front or back of your workpiece
• Lightweight, balanced design made from a single block of 6061-T6 aluminium and anodized for a protective, non-marring finish

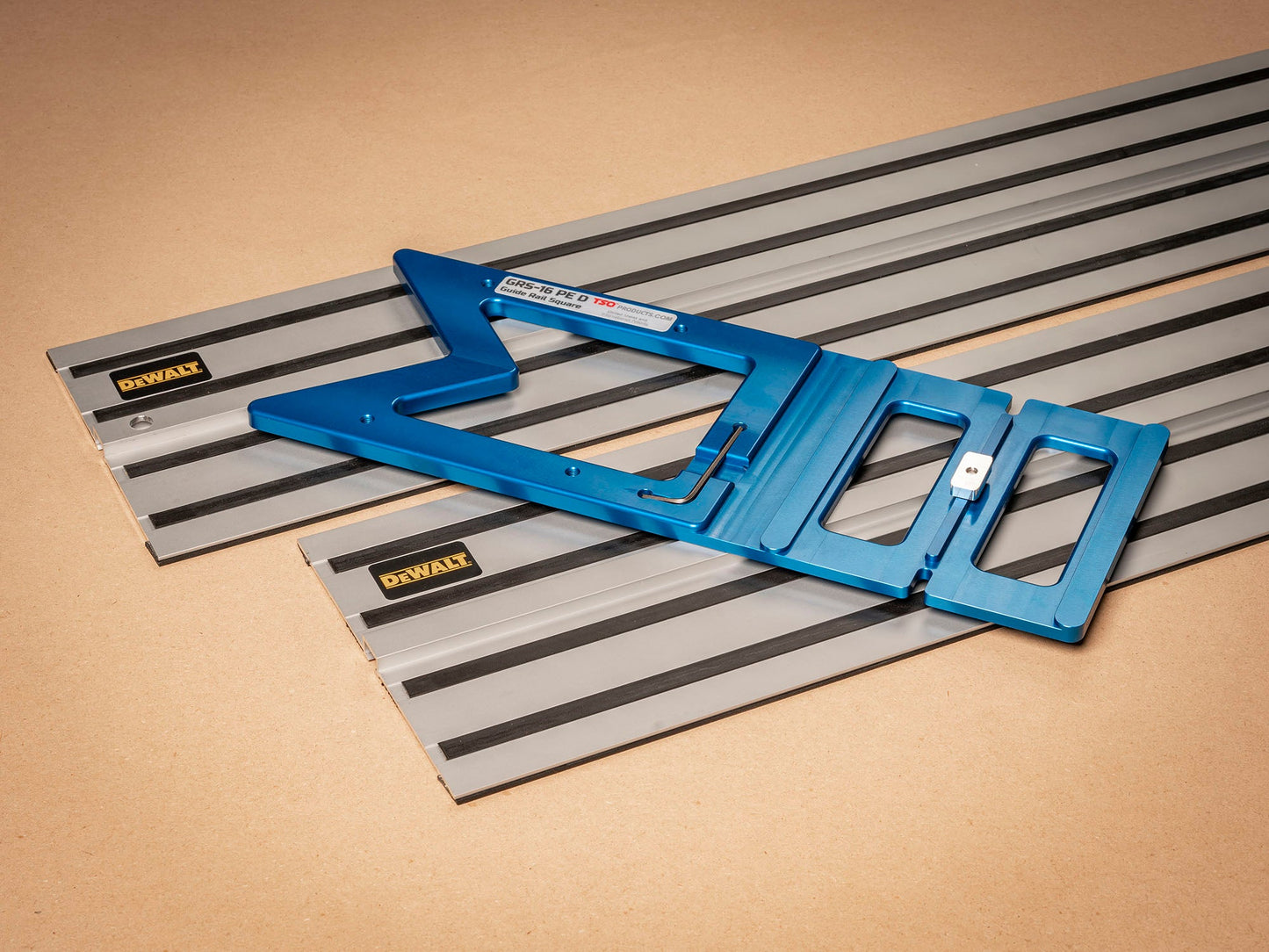

• Innovative track attachment allows the square to be mounted on either side of the track and doesn't interfere with (or require modification to) splinter-guards

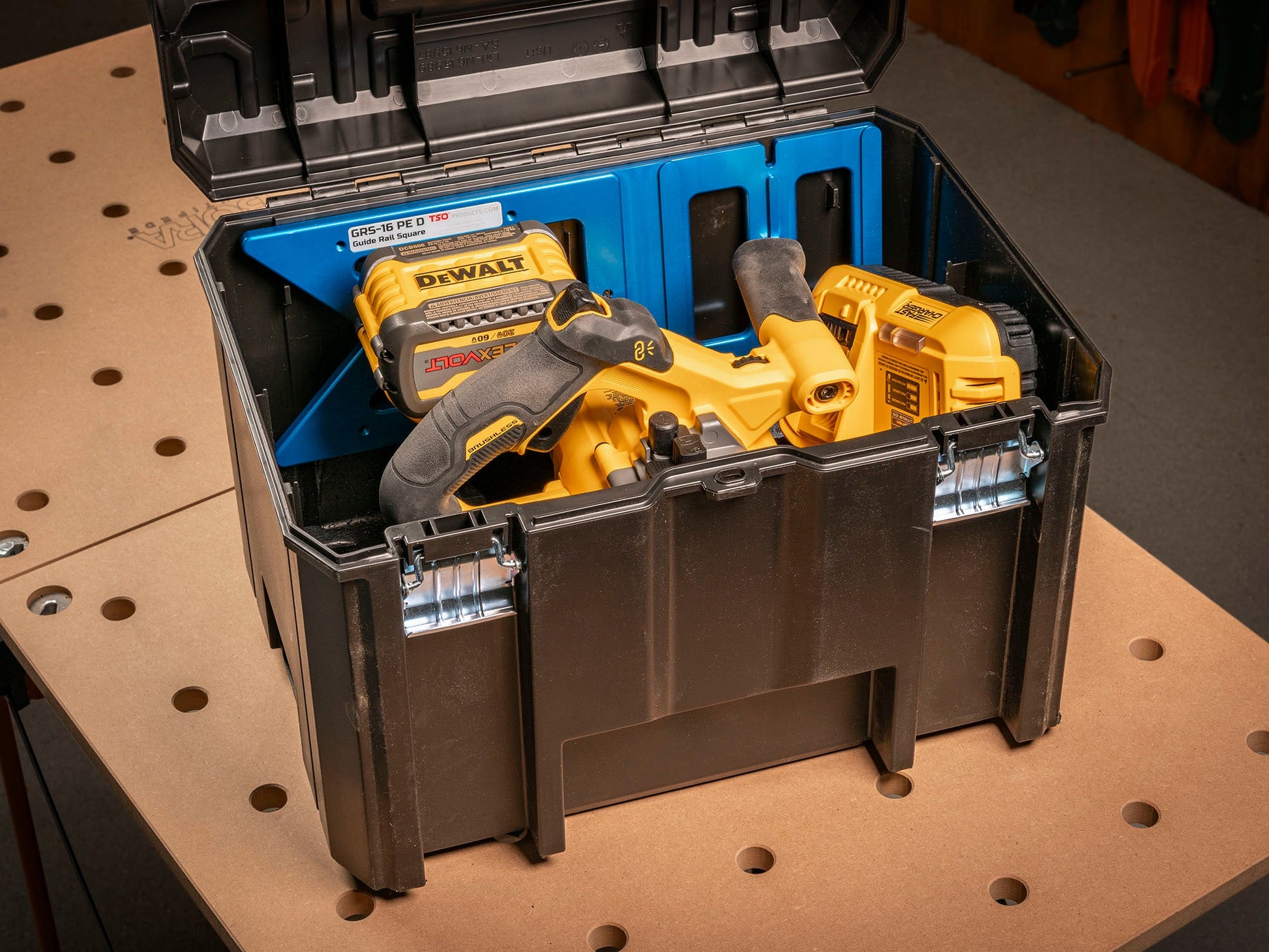

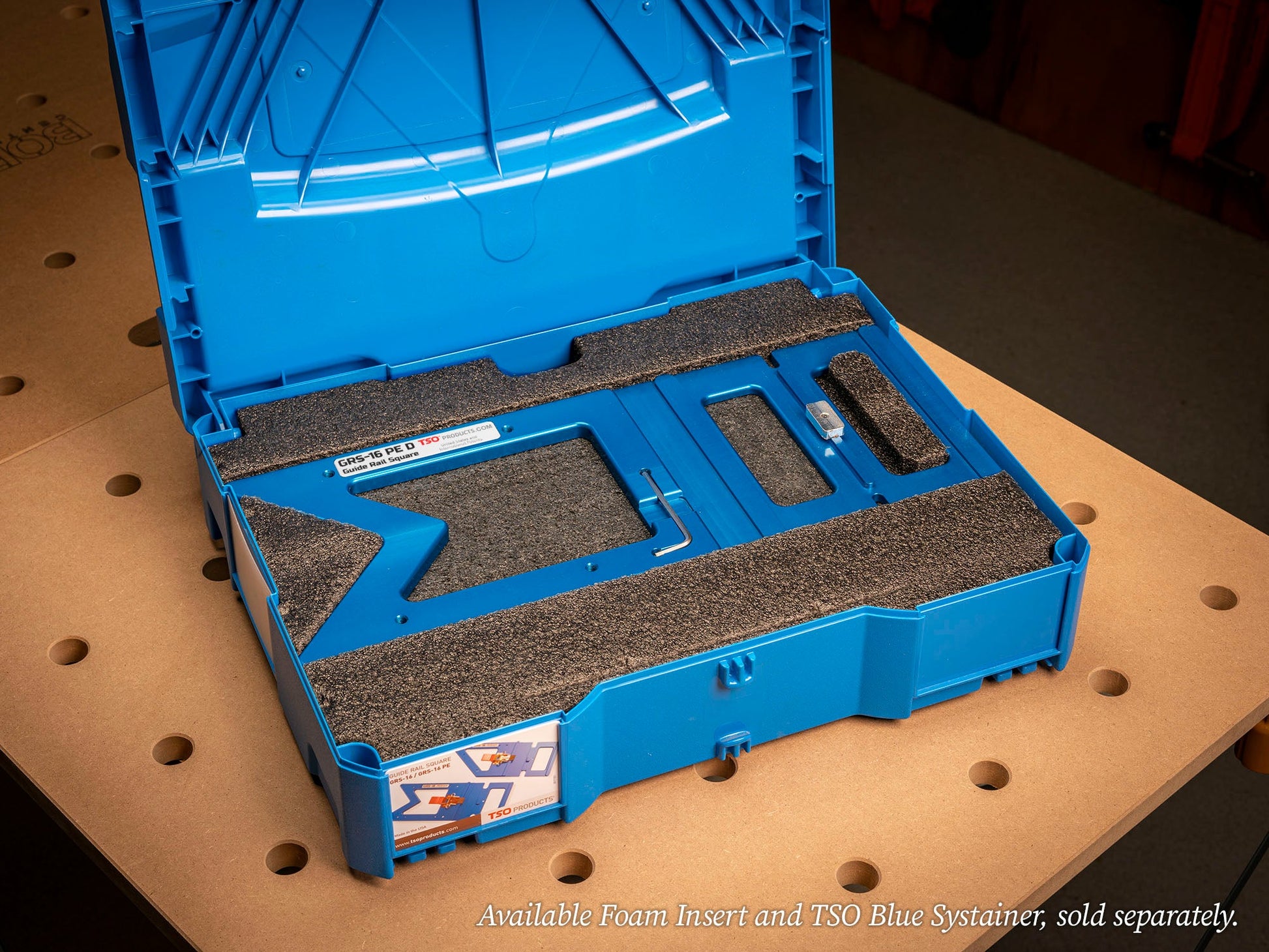

• Fits nicely in DeWalt's T-STACK storage container included with the track saw, or you can protect it in a TSO Blue Systainer and Guide Rail Foam Insert
• Sustainable, fully recyclable all-corrugated white packaging

Made in the USA and Backed by a 5-Year Warranty

The GRS-16 PE D is made in Minneapolis, United States, and comes with an industry-leading five-year warranty.

Technical Details

• Dimensions: 15.2 x 6.0 x 1.4 inches (386 x 152 x 36 mm)
• Weight: 1.9 lbs (862 g)
• Material: 6061-T6 aluminum, anodised, 5/8 in (15 mm) thick
• Compatible Guide Rails: DeWalt TRACKSAW guide rails (DWS5020, DWS5022 & DWS5023)
• Clamping Mechanism: Torpedo nut which draws the guide rail onto the tapered rail on the plate of the square; secured with included 3mm hex L-wrench
• Accessory Mounting Holes: Tapped for M6 threads for compatibility with TSO Parallel Guide System and Angle Accessory
