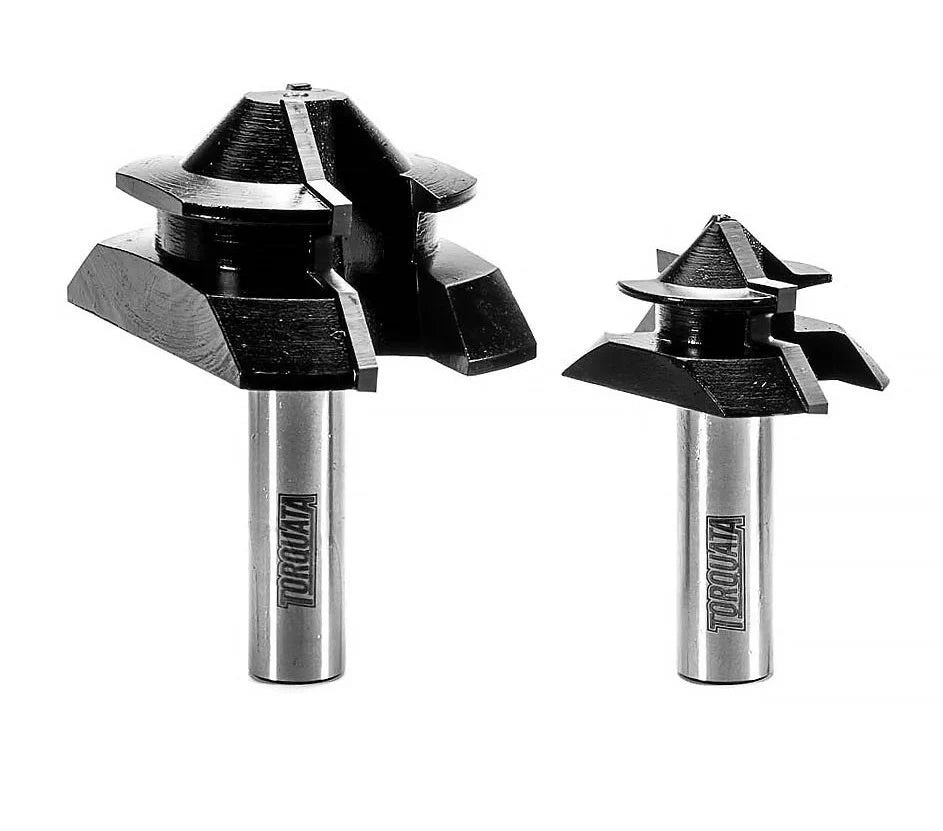

Torquata Lock Mitre Jointing Router Bits - 1/2" Shank

Amazing Lock Mitre Joinery with Specialised Router Bits

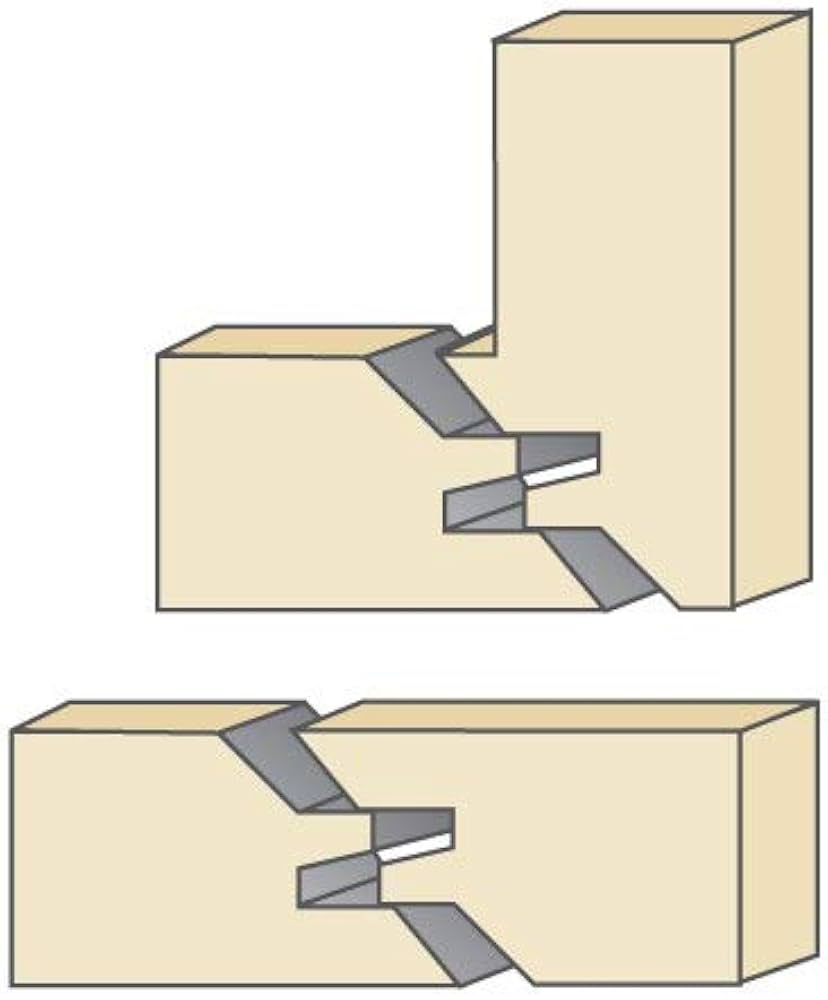

Lock mitre bits are designed to create corner joints at a 90° angle where the apex of the joint is barely visible. This joint makes it easier to assemble boxes and larger carcass workpieces together and significantly increases joint strength by increasing the gluing surface area.

Lock mitre bits are run similarly to glue joint bits except that one piece is run vertically and the other horizontally against the fence. To set up, get scrap workpieces that are the same thickness and set the centre line of the bit with the centre line of the workpieces. Run both workpieces and fit together. If they do not match perfectly then adjust the router bit up or down to get it closer and re-run the setup pieces until you get a perfect joint then you can run your actual workpieces.

If you are regularly using that thickness of timber then save the scrap to make it quicker and easier to set up next time. These bits must be used in a router table with fence.
