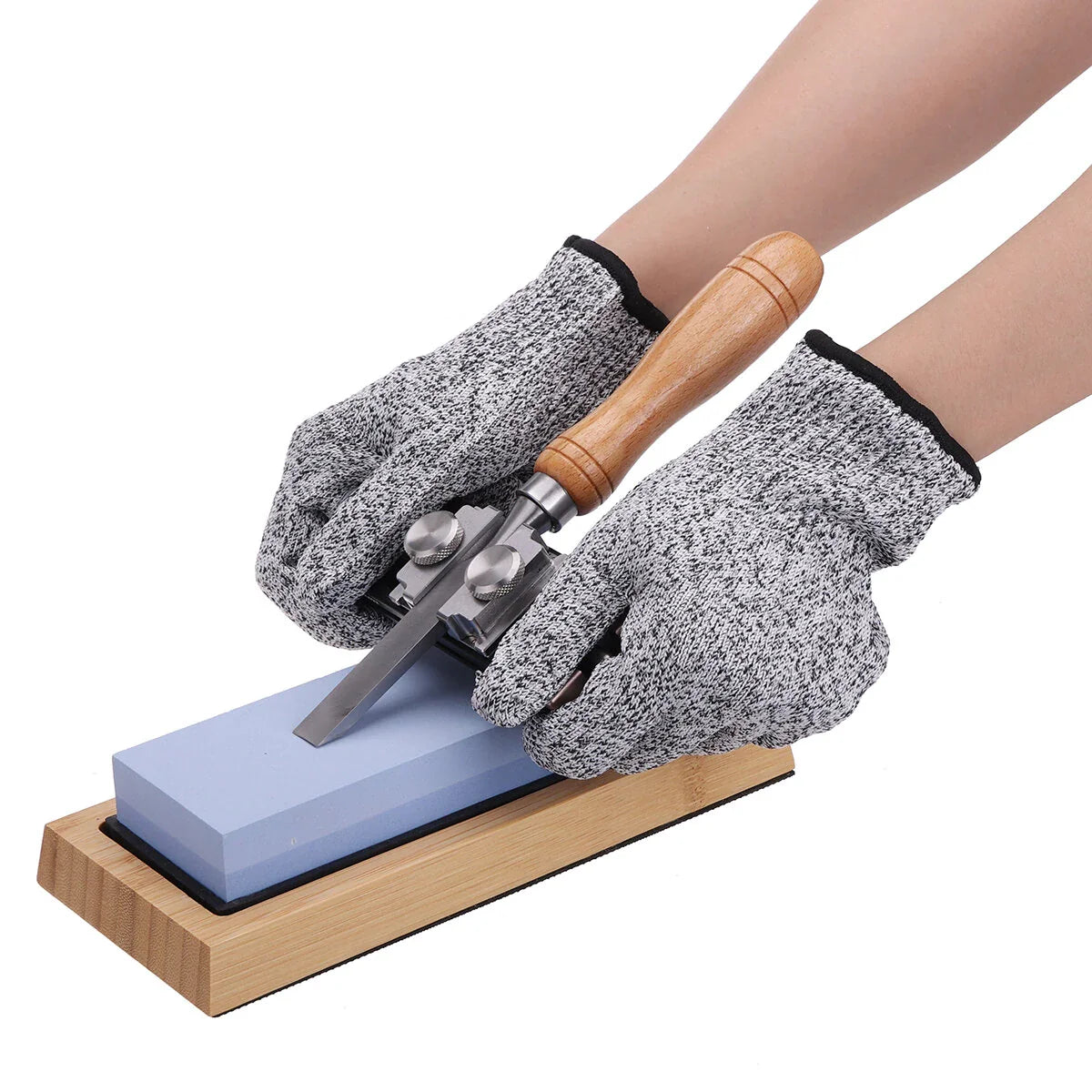

Sharpening System & Honing Guide Set - By Hongdui Tools

This high-performance system is designed to make your sharpening process faster, more accurate, and hassle-free. This honing guide offers everything you need for sharp, precise tools, ensuring that your blades maintain their edge for longer, with minimal effort.

Key Features Include:

• Integrated Blade Positioning Tool
  Set your blade angle in a single, easy step. After clamping the blade, simply slide out the quick angle positioning tool for perfect angle placement every time. This eliminates guesswork and ensures that your blades are positioned precisely for an optimal sharpening angle.

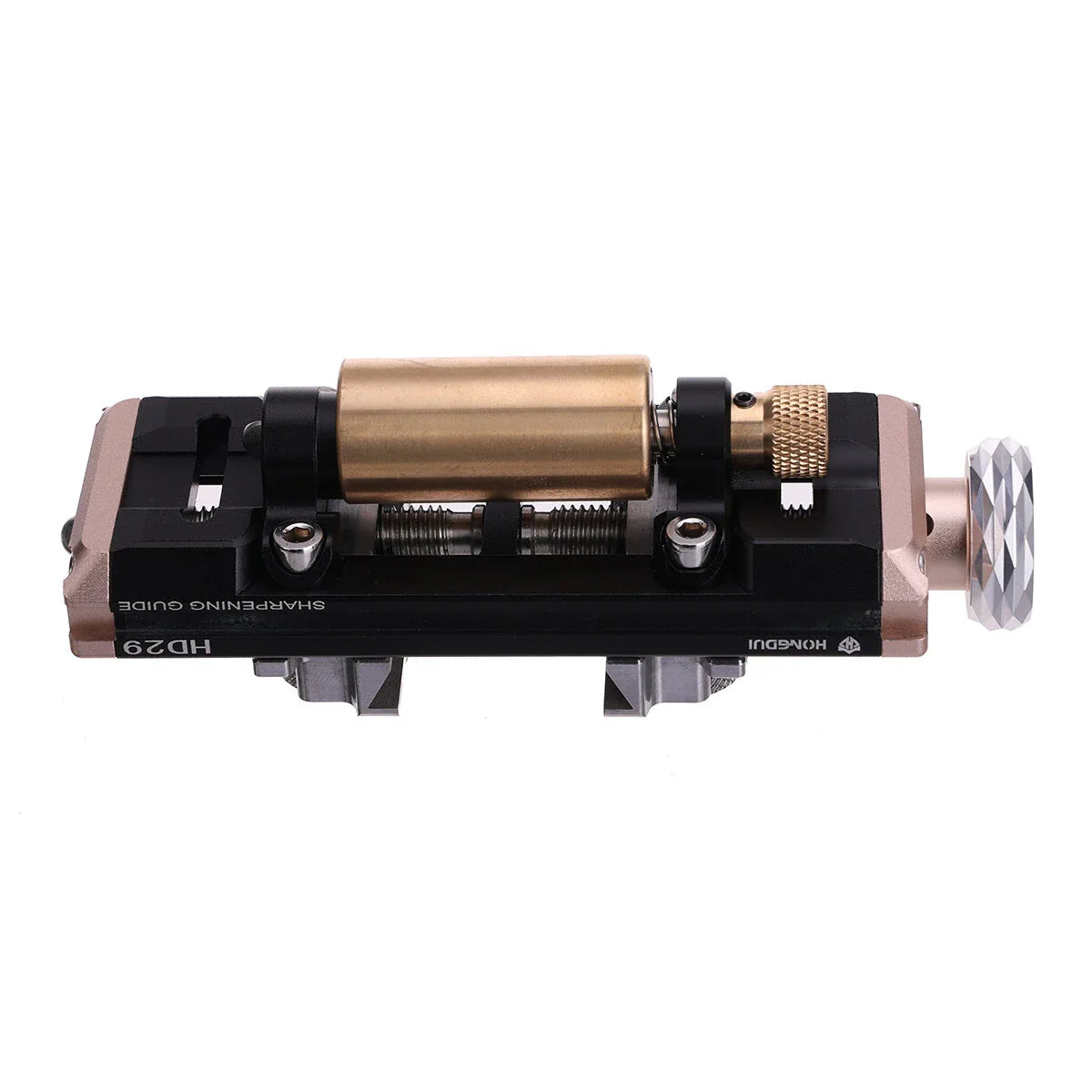

• Three-Position Eccentric Roller
  The eccentric roller has three adjustable positions, making it simple to add a micro bevel to any angle setting. Just pull back on the knob and turn to adjust the angle, giving you control over the sharpness and finish of your tools. This feature allows for maximum flexibility when sharpening various blades.
• Innovative and Unique Design
  The Sharpening System is built for comfort and precision, featuring an extended working plane and a comfortable grip for easy handling. The high clamping accuracy ensures your tools are held securely in place, while the plane’s verticality of 0.05mm and HRC40 clamp hardness guarantee stability and reliability during sharpening.
• Sturdy, Durable Materials
  Crafted from 7075 aluminium alloy with an anodised surface, the entire frame is built to last. The 440C medical stainless steel used for the screw rod and metal clamping parts enhances rust resistance, ensuring a long-lasting sharpening system that performs even in humid conditions.
• Three Different Clamping Methods
  This versatile sharpening system features a module clamping design, offering expandability for different applications:

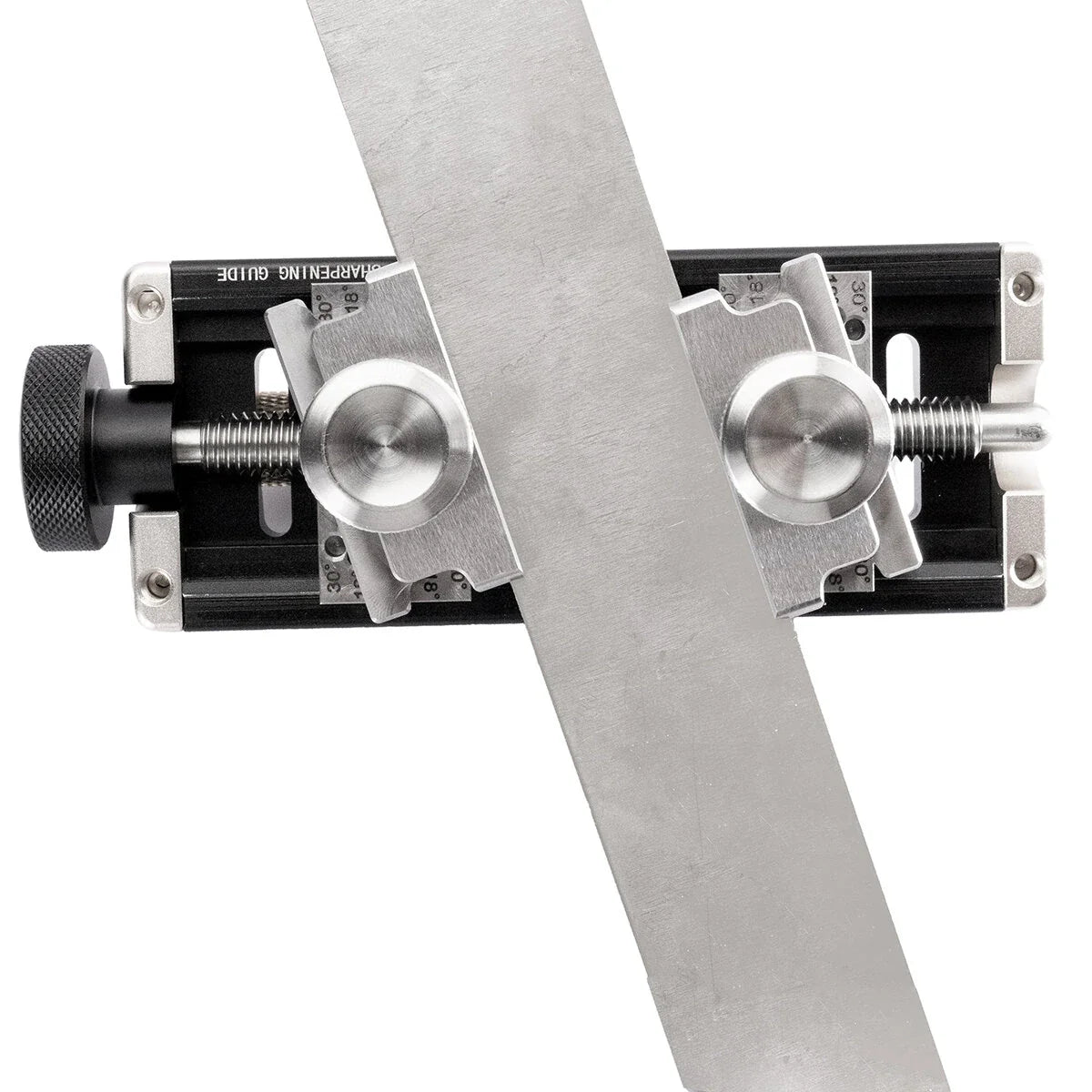

1. Lower position clamps a planer blade (up to 62mm in opening size).

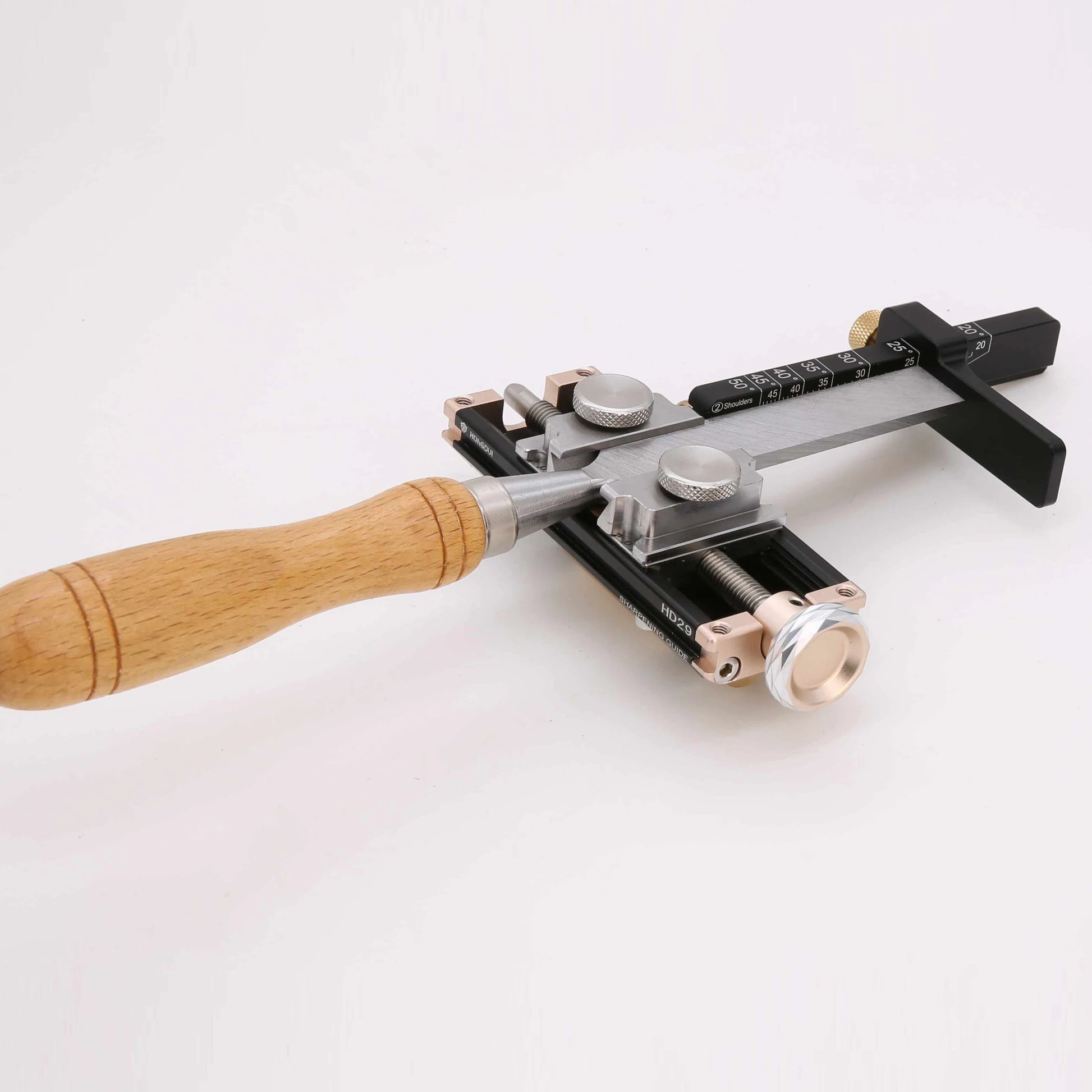

2. Upper position clamps a chisel (up to 9mm in height).
3. Rotating position offers unlimited clamping height, perfect for varied tools and applications.

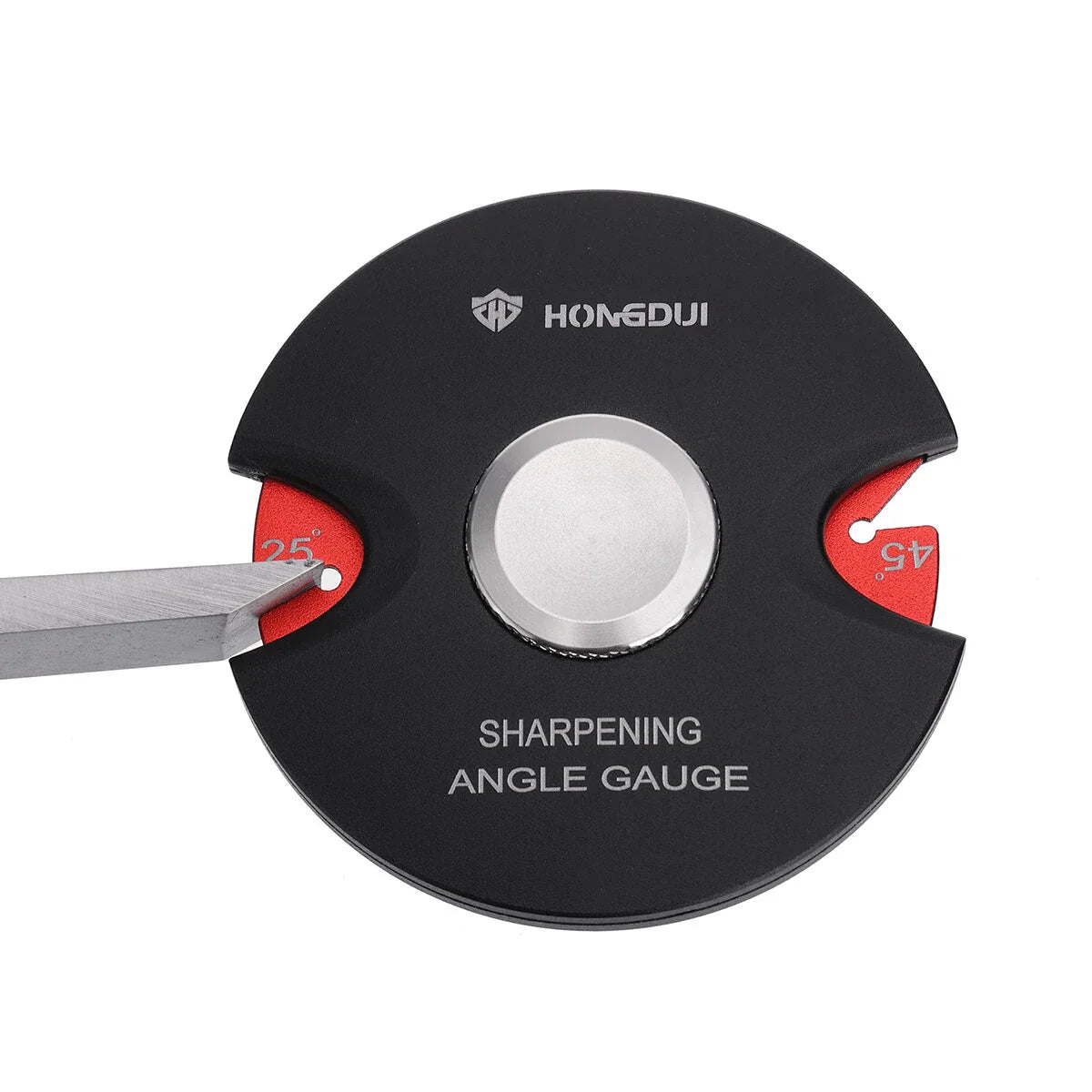

• Angle Gauge for Precise Sharpening
  Achieve perfect angles every time with the angle gauge. Simply insert the blade into the corresponding notch to obtain the reference angle. The notches cover a range of angles: 15º, 20º, 25º, 30º, 35º, 40º, 45º, and 50º, giving you complete control over your sharpening.
• Unique Gyroscopic Angle Reference Plate
  The gyroscopic angle reference plate is not only a handy tool for ensuring precise angle setting, but it also serves as a decompression tool, helping to reduce stress during the sharpening process. A unique feature that adds both function and comfort to your work.

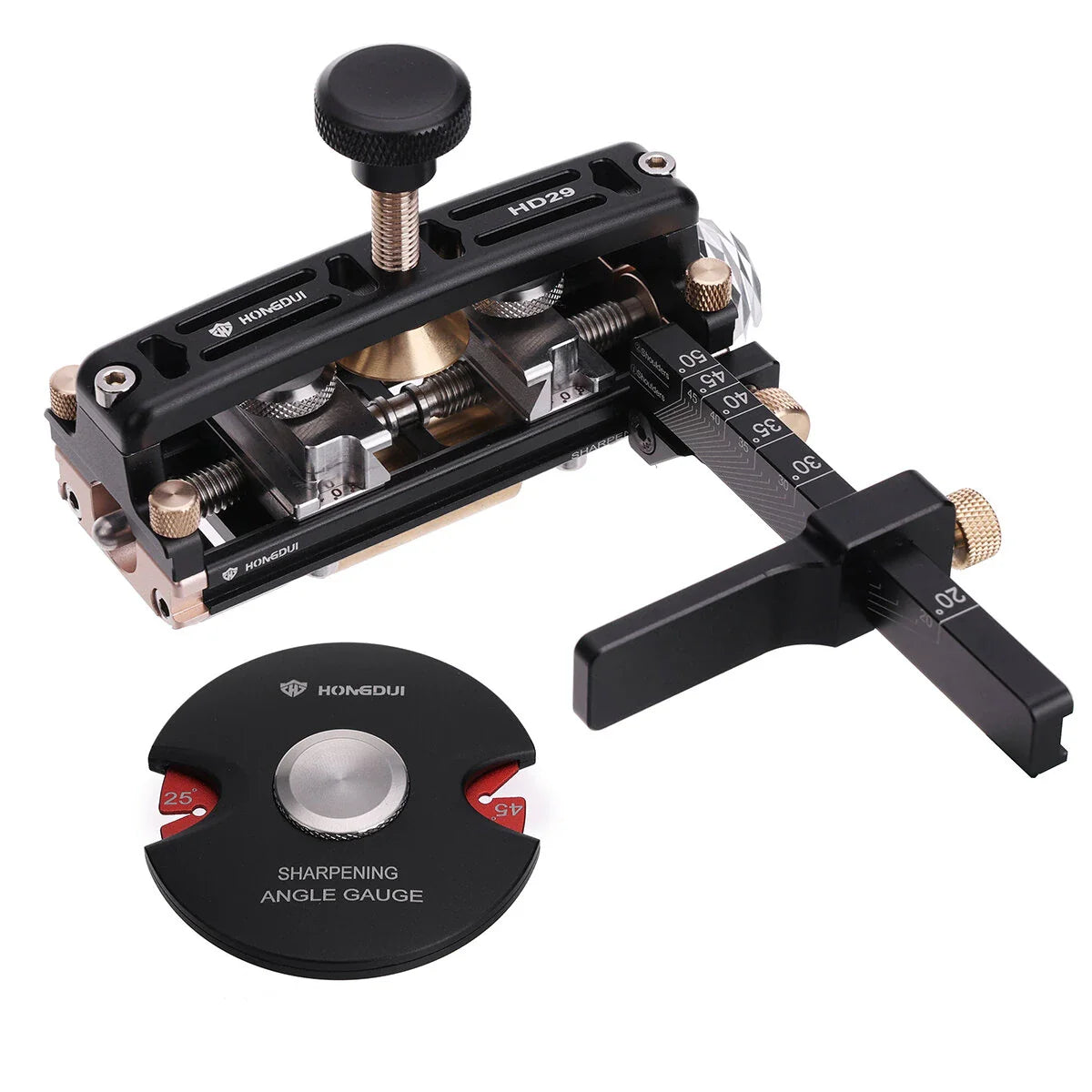

• Setting the Angle (Quick Angle Positioning Tool)

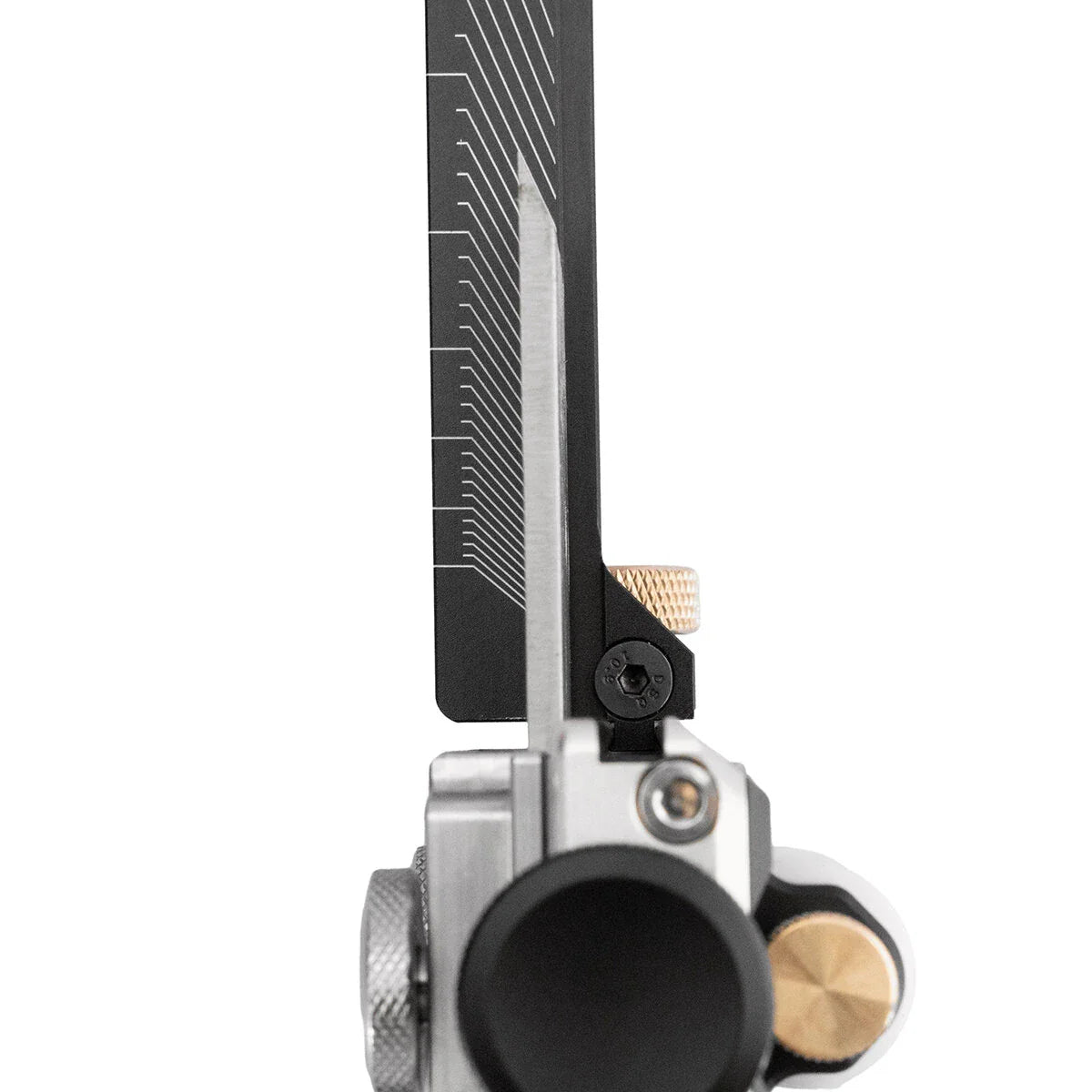

  The quick angle positioning tool lets you control the bevel length by adjusting how much of the tool extends beyond the Sharpening Guide. The more the tool extends, the smaller the angle, allowing for fine-tuning and longer bevels as required.
• Sharpening Fixture
  For blades or handles that aren't flat and can't be clamped with the module, the sharpening fixture comes in handy. It helps you securely hold and sharpen non-flat tools, making the system suitable for a wide range of sharpening tasks.

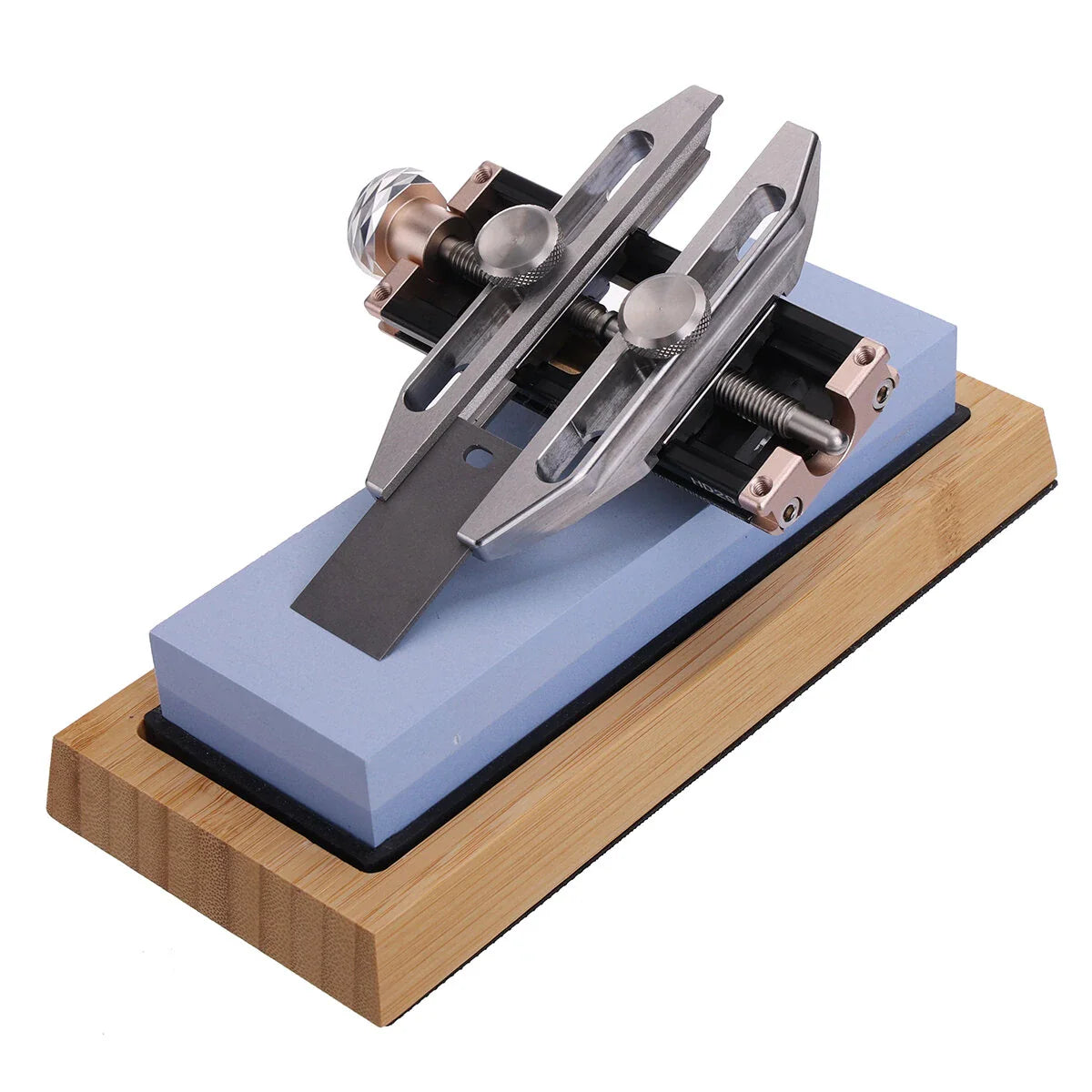

• OPTIONAL ACCESSORY - Extension Jaws (Long Jaw Pair)
  The Reversible Extension Jaws, allow short end honing bevels of up to 35° and the long end honing bevels up to 30°. This flexibility lets you sharpen a wide range of blades to your preferred angles with ease.

Note:
To set the angle quickly, you can use a flat object like a ruler for a fast, reliable reference. This simple, intuitive system makes sharpening accessible to everyone – whether you're sharpening chisels, plane irons, or other tools.

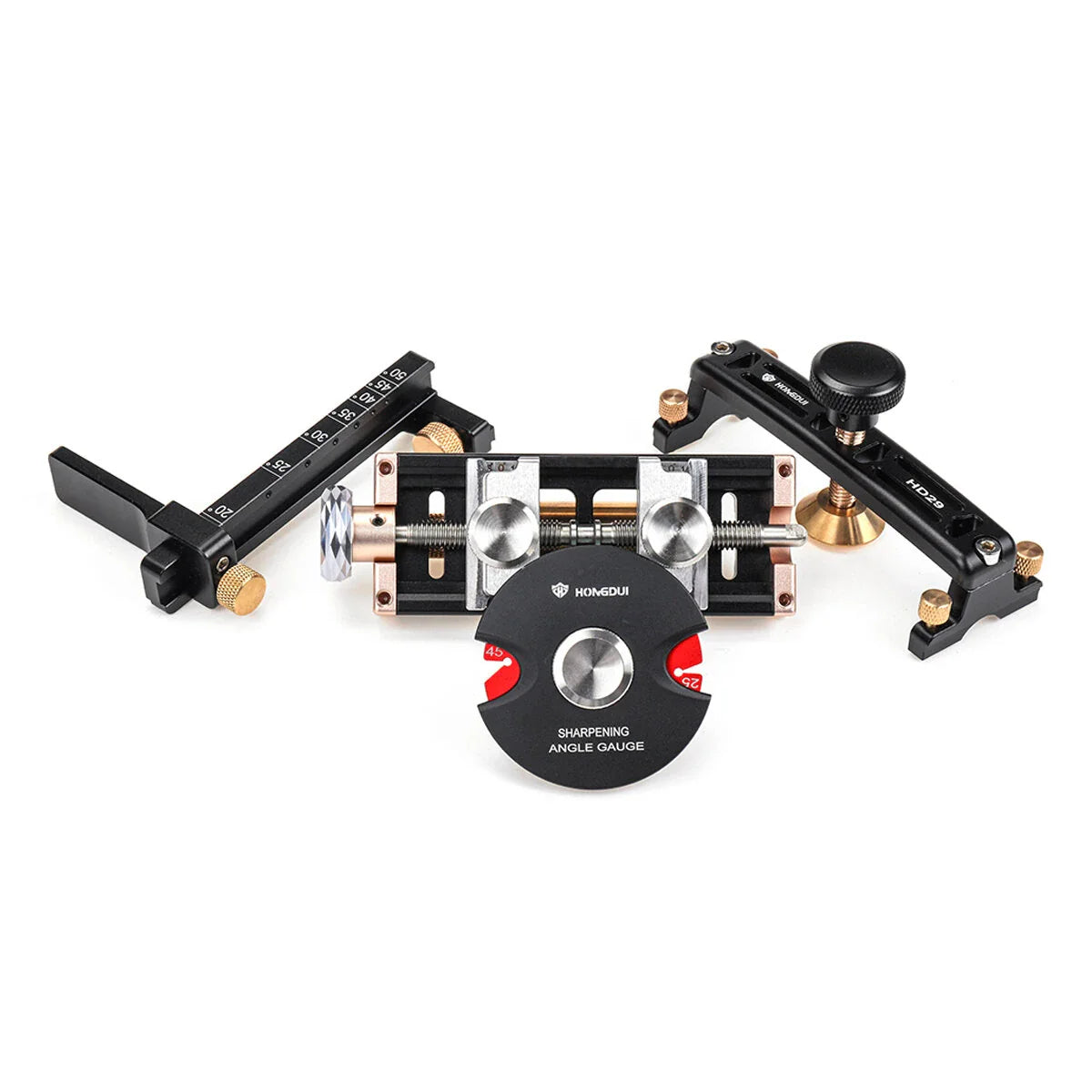

Package Includes:
1 Honing Guide(D1)
1 Angle Gauge(D3)
1 Sharpening Fixture(D4)
1 Angle Quick Positioning Tool(D5)
