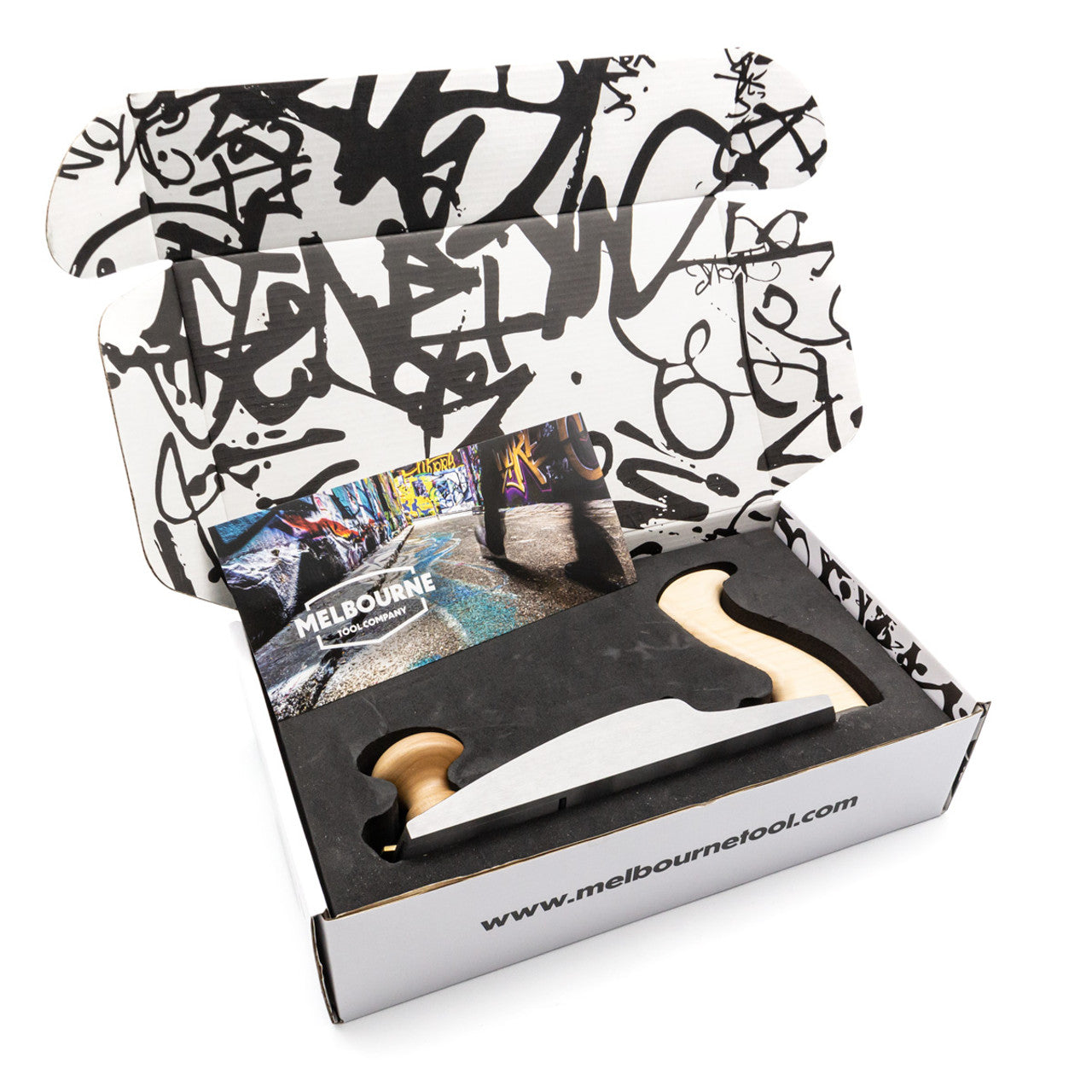

Low Angle Smoothing Plane Melbourne Tool Company

Low Angle Smoothing Plane Melbourne Tool Company

$299.00 AUD
$299.00 AUD
Sale Sold out
If you want to work with wood, then you need a good hand plane. This Melbourne Tool Company Low Angle Smoothing Plane is the most versatile and useful finishing plane you can possibly have on your bench. A fundamental tool for anyone loves to work with wood.

Your MTC Low Angle Smoothing Plane is the must have fine finishing hand tool to have on your bench. Its shorter body makes this plane perfect for finishing wooden surfaces. It produces a finish that equals or is superior to that made by fine sandpaper. The three different blade types available means this smoothing plane may be modified to suit the material being worked. And the easy blade adjustment and finely shaped timber handles will make it hard for you to put this plane down. Welcome to the MTC family.


Features & Benefits

An uncomplicated plane

This Low Angle Smoothing plane can plane any kind of wood yet remains an uncomplicated tool. The minimalistic design makes it easy to disassemble for maintenance and reassemble for work. The adjustment knobs are accessible and feature a very smooth action. The blades depth of cut is adjusted by simply turning the depth and lateral adjustment wheel. Slide the adjustment wheel side to side to skew the blade left and right. Spend more time planing, less time adjusting.

12 degree bed

The blade is set bevel-up in the milled plane bed at 12 degrees providing you with a very cool low angle of attack. Choose from a range of blade angles to suit the work at hand. The blades fix down hard down on the plane casting, so blade’s cutting edge is provided with maximum support no matter the terrain. Swap the blades out easily and quickly when you need to change gear. Watch your productivity grow with this versatile hand tool.

M2 High Speed Steel blades

MTC has chosen M2 High Speed Steel (HSS) for the blades. M2 HSS has high abrasion resistance which means it will hold a sharp edge much longer than many other steels. This also means that it may take a little longer to bring up an edge. Don’t worry, you will be leaving your sharpening gear on the shelf for a lot longer too. MTC plane blades are also thicker than the average plane, this eliminates vibration is the cut, ensuring a smooth uniform finish.

Three angled blades available, please click here for additional blades.

Easy and precise depth and lateral blade adjustment

The MTC Low Angle Smoothing plane features an easy to adjust, precise depth and lateral blade adjuster. Twist the knurled knob to set the depth of cut. Slide side to side to skew the blade within the plane mouth. The whole assembly comes apart easily for regular maintenance. MTC make caring for and setting up you hand tools easy and stress free.

Adjustable mouth

The plane mouth is fully adjustable. Twist the front handle to release the toe. Use the mouth adjustment lever to set the mouth width opening to suit the work at hand. Close the mouth up tight to minimise tear out when working difficult figured materials. Open wide to when working more predictable materials and make shavings fast without clogging.

Specifications

Here are the specifications for the MTC Low Angle Smoothing Plane.

  • Brand - Melbourne Tool Company (MTC)
  • Model SKU - Low Angle Smoothing Plane with 25 degree blade standard MTC-49414
  • Country of origin - Designed in Melbourne Australia, manufactured in China
  • Warranty - Limited lifetime
  • Sole dimensions – 63 x 244mm (effective length)
  • Weight – 1.5kg
  • Handles - Maple
  • Plane steel - M2 HSS
  • Plane bed angle - 12 degrees
  • Plane blade dimensions - 3.2 x 51 x 95mm
  • Standard blade cutting angle (supplied) - 25 degrees

Additional blades & Kits

  • 25 degrees MTC-49476
  • 38 degrees MTC-49483
  • 50 degrees MTC-49490
  • 38 & 50 degree blade kit MTC-49414-BLK-2
