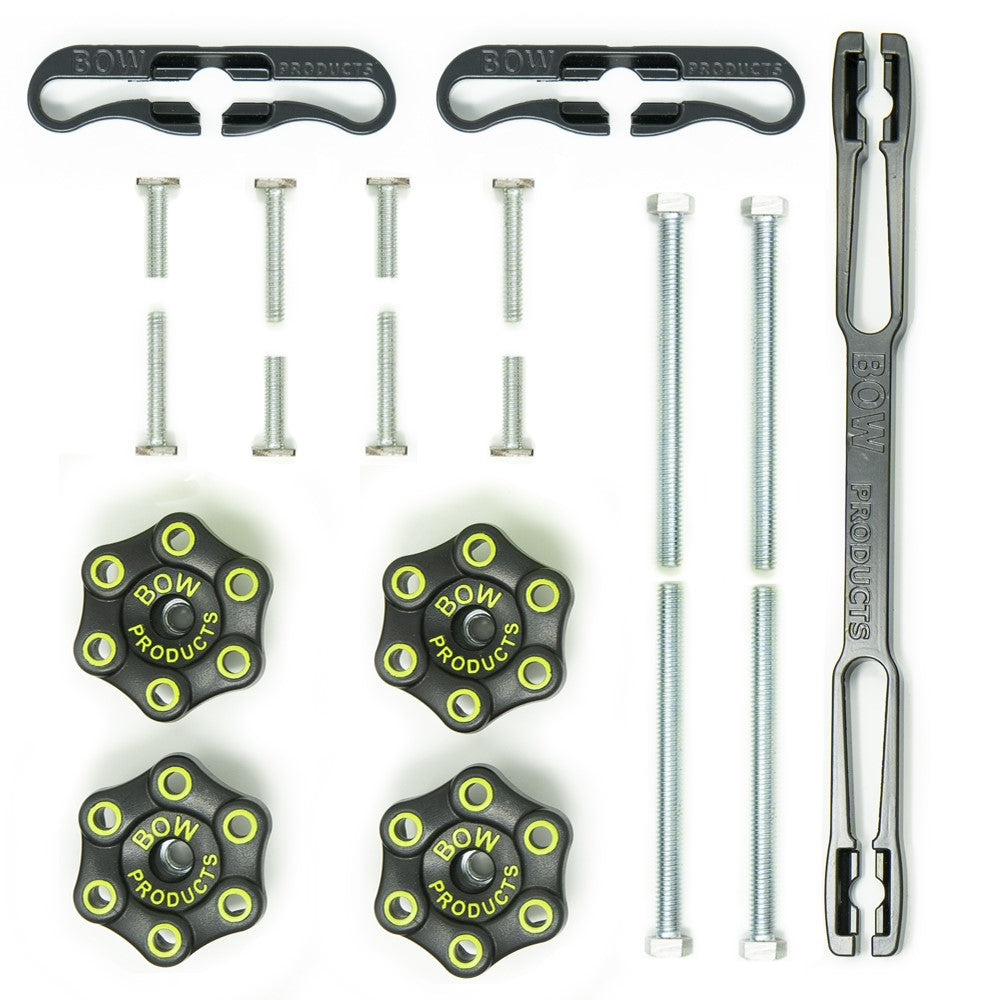

The AnchorPRO Combo 3/4in Mitre Bar Kit is multi-use fixturing hardware featuring 3/4” mitre bars and Bows Patented AnchorPRO design. The Mitre Bar design is uniquely configured to add more surface contact in the slot and generates greater hold force quickly, within just one turn of the knob. The T-Bolt and Mitre Bar are designed to work together efficiently to maximise expansion quickly, and with less effort than traditional hardware. Mounts to a 3/8in * 3/4in (quickly expands to fit 20mm) Mitre Slot, or a 12-19mm T-Track if using just the T Bolts. Comes with four Bow Comfortable “oversized” Ergonomic Knobs.
Benefits:
- Greater Expansion Range
- Faster Easier Securement
- Tightens in Less Than One Revolution
- Strong Hold
- Integrated T-Bolt for T-Track Applications
- Accommodates Variations in Miter Slots
Specifications:
- Mounts to a 3/8 *3/4” (fits up to 20mm) Miter Slot, or a 12-19mm T-Track.
- 1 – 3/4″ (19mm) Large Miter Bar
- 2 – 3/4″ (19mm) Small Miter Bars
- 2 – Bow Branded Chain Link Knobs
- 4 – 4-3/8″ T Bolt (5/16″ -18)
- 4 – 2-1/4″ T Bolt (5/16″ -18)
- 4 – 1-1/2″ T Bolt (5/16″ -18)
- T Bolt Head dimensions: .090 Thick x .45 Wide x .725 Long
