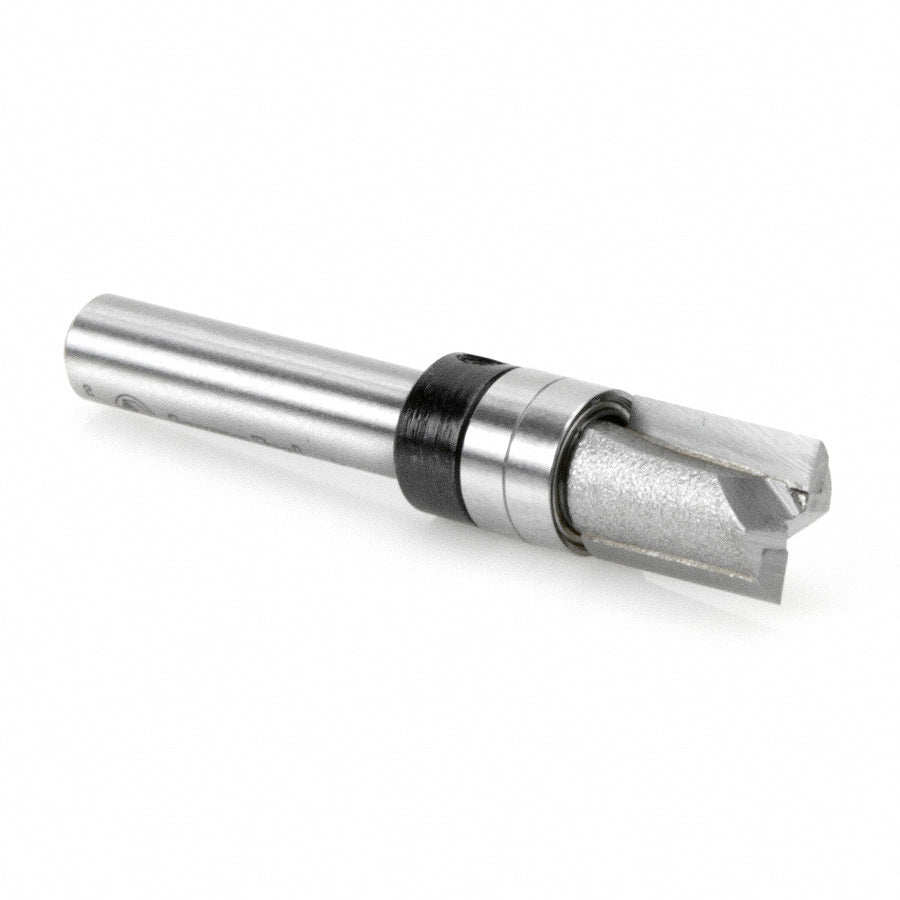

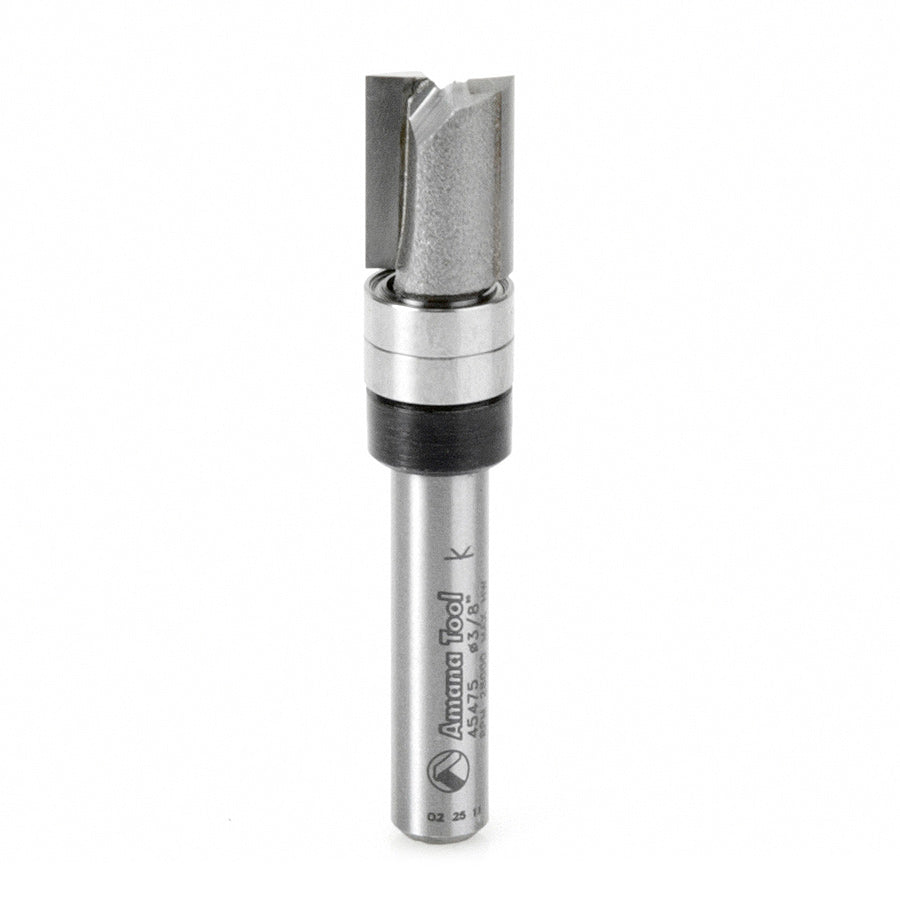

45475 Amana Tool Carbide Tipped Flush Trim Plunge Bit

45475 Amana Tool Carbide Tipped Flush Trim Plunge Bit

$67.20 AUD
$67.20 AUD
Sale Sold out

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work. Double Bearing.

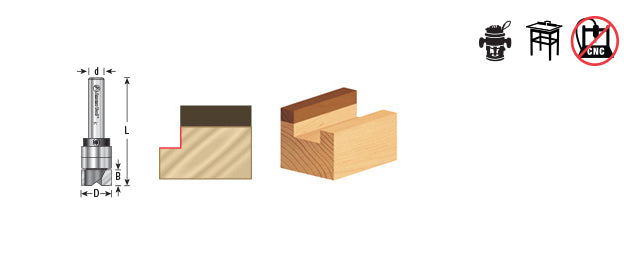

Diameter (D) 3/8 -12.7mm
Cutting Height (B) 1/2 - 6.35mm
Shank (d) 1/4
Overall Length (L) 2 - 50.8mm
Replacement Collar 47724
Replacement Bearing 47751 (requires 2)
Flutes 2

What we use it for:
We use this router bit for pocketing our Tray + Dish Templates

*NOTE* There are no warranty on this bit. Avoid adding too much force which will apply pressure on bearing and lock ring. Reduce speed to 30 - 50 RPM.
