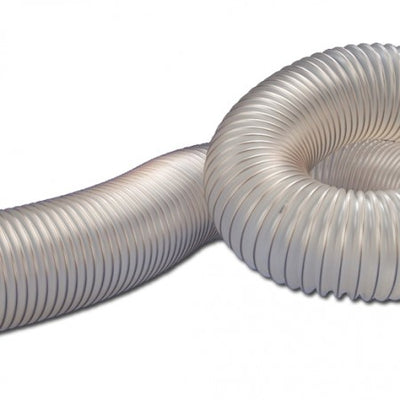

4" High Flex Dust Collection Duct/Hose - Clear PU Flexible Antistatic

4" High Flex Dust Collection Duct/Hose - Clear PU Flexible Antistatic

$115.00 AUD
$115.00 AUD
Sale Sold out
Size

As the hose is made from a clear material it provides a visibility that is not found in other types of hose. This clarity allows you to see your system working well or where there might be a blockage, making it a fantastic addition to any dust collection system.

Sold in 5m, 10m & 15m increments. For shorter lengths (2m) please visit our other product listing.

Applications:-

  • for abrasive solids such as dust, powder, fibres and chips
  • for industrial air movement and fume control
  • for extraction arms and dust collection equipment
  • for CNC machining areas

Specification:-

  • Construction
    • spring steel wire integrated in wall
    • wall thickness 0.4 mm approx.
  • Material
    • Wall - Ester-polyurethane
    • Spiral - Spring steel wire
  • Standard Colour
    • Transparent
  • Other Properties
    • optimised flow properties
    • microbe and hydrolysis resistant
    • chemical resistant
    • good resistance to UV and ozone
    • very good low temperature flexibility
    • small bending radius
    • kink-proof
    • gas and liquid tight
    • good resistance to abrasion excellent compressibility 3:1 • can be made anti-static by grounding the spiral • good tensile strength
  • Temperature Range
    • -40 °C approx. to +90 °C approx.
    • short time to +125 °C approx.

Hose Sizes Available (Internal Diameter):-

  • 2-1/2 (63mm) x 15m (50ft) PU Hose
  • 76mm / 3"
  • 4" (100mm) x 15m (50ft) PU Hose
  • 5" (125mm) x 15m (50ft) PU Hose
  • 6" (150mm) x 15m (50ft) PU Hose
  • 7" (180mm) x 15m (50ft) PU Hose
  • 8" (200mm) x 15m (50ft) PU Hose
  • 10" (250mm) x 15m (50ft) PU Hose

Other Technical Specifications:-

ID OD Overpressure Vacuum Bending Radius Weight
mm mm bar bar mm kg/m
25 32 1.300 0.340 32 0.14
32 39 1.100 0.320 39 0.17
38 46 0.900 0.300 46 0.19
50 58 0.700 0.240 58 0.27
60 68 0.560 0.210 68 0.31
63 71 0.550 0.180 71 0.34
76 84 0.470 0.130 84 0.44
80 88 0.430 0.120 88 0.47
90 98 0.390 0.100 98 0.49
100 108 0.350 0.080 108 0.52
114 122 0.300 0.070 122 0.59
120 128 0.290 0.070 128 0.62
125 133 0.280 0.060 133 0.64
140 148 0.250 0.050 148 0.72
150 158 0.170 0.050 158 0.76
160 168 0.160 0.040 168 0.81
178 186 0.140 0.040 186 0.89
180 188 0.140 0.040 188 0.90
200 208 0.130 0.030 208 1.10
203 211 0.130 0.030 211 1.10
254 262 0.100 0.015 262 1.30
305 313 0.090 0.015 313 1.70
